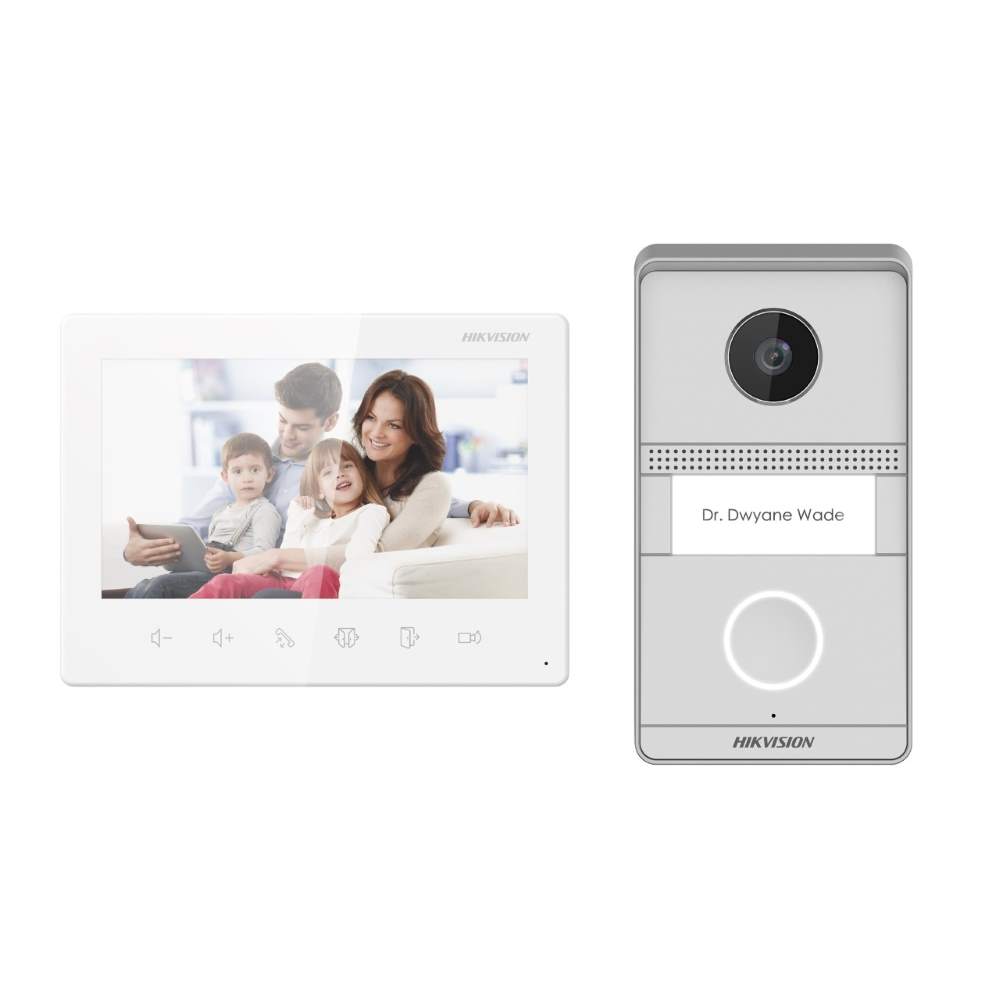

Hikvision 2 Wire Intercom Kit, HD Analogue, 1 to 1, Flush Mount

The Hikvision HIK-KIS101-P-F is a 2 wire flush mount intercom bundle which includes an IK07 rated analogue door station featuring a 2MP HD resolution camera, along with a 7 inch room station. This 2nd generation bundle comes with everything required for a one-to-one system and is a cost-effective solution for residential or small business premises, especially when retrofitting existing sites. It is a great starting point and can be expanded if required up to 2 doors and 4 room stations. It includes the required power supply, simplifying the ordering process and ensuring a smooth setup.

Included items:

• 1x HIK-KV1101-ME2-F
• 1x HIK-KH1200
• 1x power supply

2 Wire Analogue Door Station

• Single button
• 2MP HD camera
• Low illumination
• Tamper proof
• Vandal resistant
• Built-in omnidirectional microphone and loudspeaker

2 Wire Analogue Room Station

• 7 inch colour screen
• 6 buttons
• Built-in omnidirectional microphone and loudspeaker

Datasheets

• HIK-KIS101-P-F Datasheet.pdf

2 Wire Analogue Door Station

• Relay: 2 outputs
• Video resolution: 1024 x 600
• Lens: H: 100 degrees, V: 69 degrees
• Weatherproof rating: IP65
• Protection level: IK07
• Mount: flush
• Power: 12V DC
• Dimensions: 150 x 82 x 23.5mm

2 Wire Analogue Room Station

• Display size: 7 inch
• Alarm input: 4 channels
• Relay output: 1
• Video resolution: 1024 x 600
• Button: 6 touch buttons
• Built-in omnidirectional microphone
• Built-in loudspeaker
• Dimensions: 187 x 137 x 25.4mm
