*SpOrd* Hikvision Intercom, 10" Facial Door Station, 2.5D Curved 10" Screen, 10K Faces

HIK-KD9633-WBE6
AVAILABLE TO ORDER
*SpOrd* Hikvision Intercom, 10" Facial Door Station, 2.5D Curved 10" Screen, 10K Faces

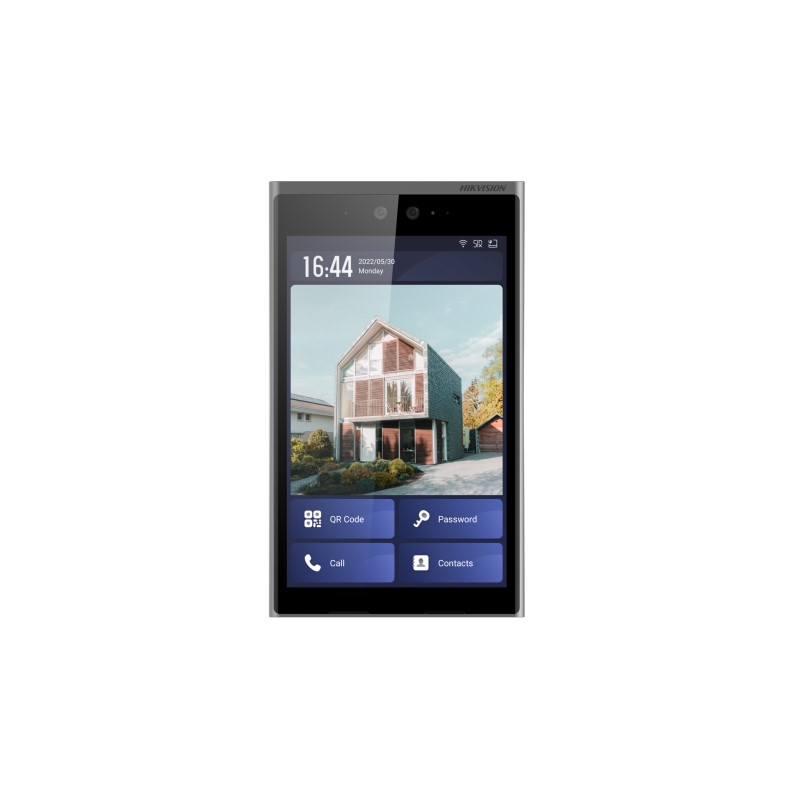

The HIK-KD9633-WBE6 is an intelligent IP video door station intercom.

  • Aluminium frame
  • 2.5D curved 10.1-inch IPS touch screen
  • Multiple authentications
  • Built in omnidirectional microphone
  • Built in loudspeaker Audio
  • Noise suppression and echo cancellation

  • Screen size: 10.1-inch
  • Touch screen Type: Colourful IPS
  • Resolution: 128 x 800
  • Video standard: H.264
  • Camera field of view: Horizontal 88 degrees, vertical 44 degrees
  • WDR Support
  • Resolution: 2 MP
  • Audio compression: Standard G.711 U, G.711 A
  • Compression bitrate: 64 Kbps
  • User capacity: 20000
  • Card capacity: 100000
  • Face capacity: 10000
  • Sub door station capacity: 16
  • Network: 10/100/1000 Mbps & Wi-Fi
  • Card reader: CSN (Mifare)
  • Alarm input: 4 (2x for REX & 2x for door sensor by default)
  • Output: 2x relay
  • Weight: 1.265 kg
  • Weather rating: IP65
  • Anti-vandal rating: IK07
  • Working temperature: -30 degrees to 60 degrees Celsius
  • Dimensions: 271 mm (H) x 159.2 mm (W) x 26.5 mm (D)
  • Power supply: 12 VDC, 2 A
  • Power consumption: 18W MAX

add remove Description

No description available for this product

  • Screen size: 10.1-inch
  • Touch screen Type: Colourful IPS
  • Resolution: 128 x 800
  • Video standard: H.264
  • Camera field of view: Horizontal 88 degrees, vertical 44 degrees
  • WDR Support
  • Resolution: 2 MP
  • Audio compression: Standard G.711 U, G.711 A
  • Compression bitrate: 64 Kbps
  • User capacity: 20000
  • Card capacity: 100000
  • Face capacity: 10000
  • Sub door station capacity: 16
  • Network: 10/100/1000 Mbps & Wi-Fi
  • Card reader: CSN (Mifare)
  • Alarm input: 4 (2x for REX & 2x for door sensor by default)
  • Output: 2x relay
  • Weight: 1.265 kg
  • Weather rating: IP65
  • Anti-vandal rating: IK07
  • Working temperature: -30 degrees to 60 degrees Celsius
  • Dimensions: 271 mm (H) x 159.2 mm (W) x 26.5 mm (D)
  • Power supply: 12 VDC, 2 A
  • Power consumption: 18W MAX
