*SpOrd* Hikvision Intercom, 10" Facial Door Station, 2.5D Curved 10" Screen, 10K Faces
Code:
HIK-KD9633-WBE6
Brand:
Hikvision
Product Details
*SpOrd* Hikvision Intercom, 10" Facial Door Station, 2.5D Curved 10" Screen, 10K Faces
Overview
Features
Specifications
Downloads

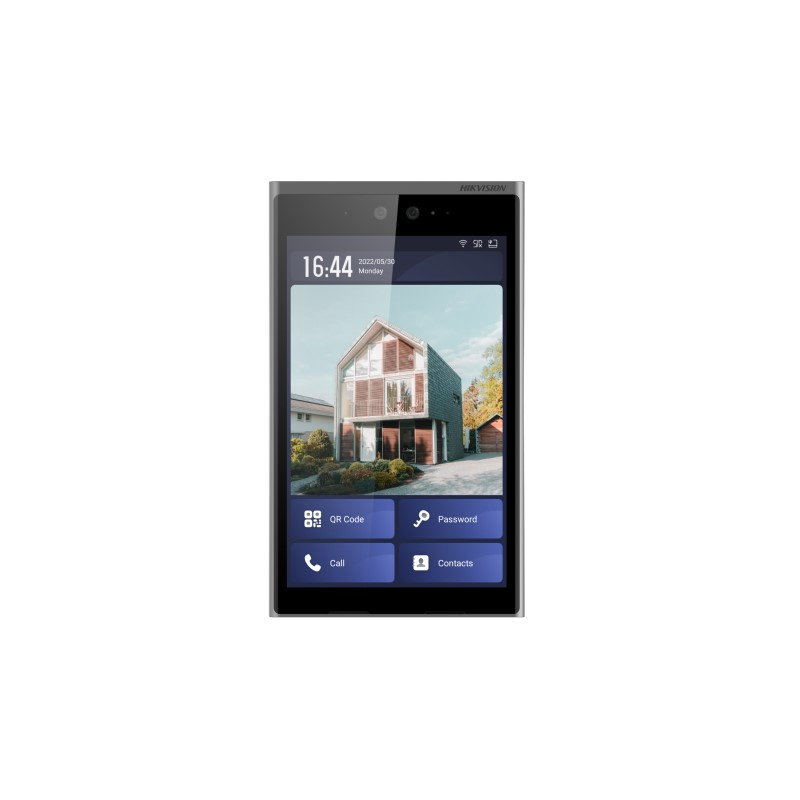

The HIK-KD9633-WBE6 is an intelligent IP video door station intercom.
Aluminium frame
2.5D curved 10.1-inch IPS touch screen
Multiple authentications
Built in omnidirectional microphone
Built in loudspeaker Audio
Noise suppression and echo cancellation
Datasheets
HIK-KD9633-WBE6 Datasheet.pdf
Screen size: 10.1-inch
Touch screen Type: Colourful IPS
Resolution: 128 x 800
Video standard: H.264
Camera field of view: Horizontal 88 degrees, vertical 44 degrees
WDR Support
Resolution: 2 MP
Audio compression: Standard G.711 U, G.711 A
Compression bitrate: 64 Kbps
User capacity: 20000
Card capacity: 100000
Face capacity: 10000
Sub door station capacity: 16
Network: 10/100/1000 Mbps & Wi-Fi
Card reader: CSN (Mifare)
Alarm input: 4 (2x for REX & 2x for door sensor by default)
Output: 2x relay
Weight: 1.265 kg
Weather rating: IP65
Anti-vandal rating: IK07
Working temperature: -30 degrees to 60 degrees Celsius
Dimensions: 271 mm (H) x 159.2 mm (W) x 26.5 mm (D)
Power supply: 12 VDC, 2 A
Power consumption: 18W MAX
