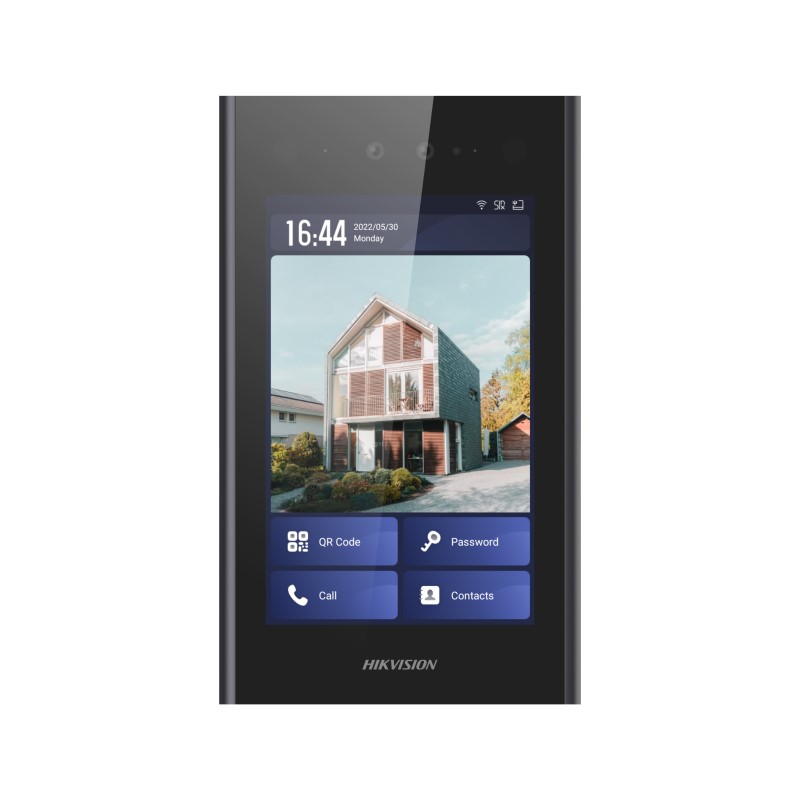

*SpOrd* Hikvision Intercom, 8" Facial Door Station, 2.5D Curved Screen, 10K Faces
The HIK-KD9406-E6 door station is part of Hikvision's intercom and access control range and allows multiple options to allow access through a door, including facial recognition, RFID card reader and an unlock code. It can call any of Hikvision's 2nd Generation room station and features a digital keypad that can call up to 500 individual room stations, suitable for apartment or multiple complex environments. A second door release can be added when using the HIK-K2M061 RS-485 secure door module.
- Anodized aluminium frame
- 2.5D curved touch screen
- Resolution: 1280 x 800
- Screen size: 8 Inch
- User capacity: 20000
- Card capacity: 100000
- Face capacity: 10000
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Sub door station capacity: 16
- Wired network: 10/100/1000 Mbps self-adaptive Ethernet
- Working temperature: -30 degrees to 60 degrees
- Working humidity: 10 to 90 per cent
- Weather rating: IP65
- Dimensions: 244 mm x 145 mm x 26 mm
- Power supply: 12 VDC, 2 A
Datasheets
The HIK-KD9406-E6 door station is part of Hikvision's intercom and access control range and allows multiple options to allow access through a door, including facial recognition, RFID card reader and an unlock code. It can call any of Hikvision's 2nd Generation room station and features a digital keypad that can call up to 500 individual room stations, suitable for apartment or multiple complex environments. A second door release can be added when using the HIK-K2M061 RS-485 secure door module.
- Resolution: 1280 x 800
- Screen size: 8 Inch
- User capacity: 20000
- Card capacity: 100000
- Face capacity: 10000
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Sub door station capacity: 16
- Wired network: 10/100/1000 Mbps self-adaptive Ethernet
- Working temperature: -30 degrees to 60 degrees
- Working humidity: 10 to 90 per cent
- Weather rating: IP65
- Dimensions: 244 mm x 145 mm x 26 mm
- Power supply: 12 VDC, 2 A
