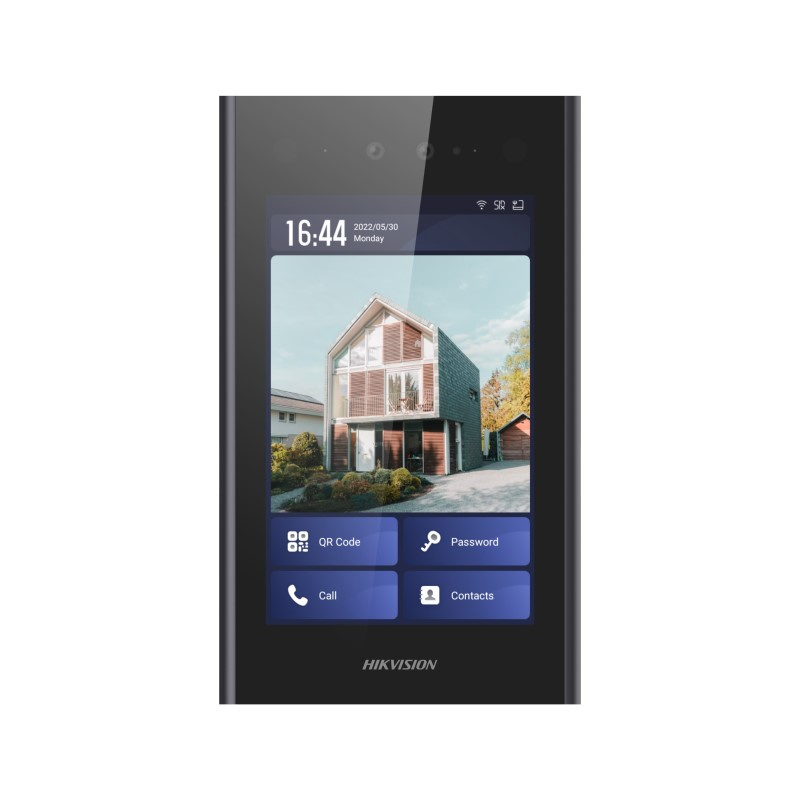

*SpOrd* Hikvision Intercom, 8" Facial Door Station, 2.5D Curved Screen, 10K Faces

The HIK-KD9406-E6 door station is part of Hikvision's intercom and access control range and allows multiple options to allow access through a door, including facial recognition, RFID card reader and an unlock code. It can call any of Hikvision's 2nd Generation room station and features a digital keypad that can call up to 500 individual room stations, suitable for apartment or multiple complex environments. A second door release can be added when using the HIK-K2M061 RS-485 secure door module.

• Anodized aluminium frame
• 2.5D curved touch screen

Datasheets

• HIK-KD9403-E6 Datasheet.pdf

• Resolution: 1280 x 800
• Screen size: 8 Inch
• User capacity: 20000
• Card capacity: 100000
• Face capacity: 10000
• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Sub door station capacity: 16
• Wired network: 10/100/1000 Mbps self-adaptive Ethernet
• Working temperature: -30 degrees to 60 degrees
• Working humidity: 10 to 90 per cent
• Weather rating: IP65
• Dimensions: 244 mm x 145 mm x 26 mm
• Power supply: 12 VDC, 2 A
