Hikvision 2nd Gen Intercom, Touch Display Module

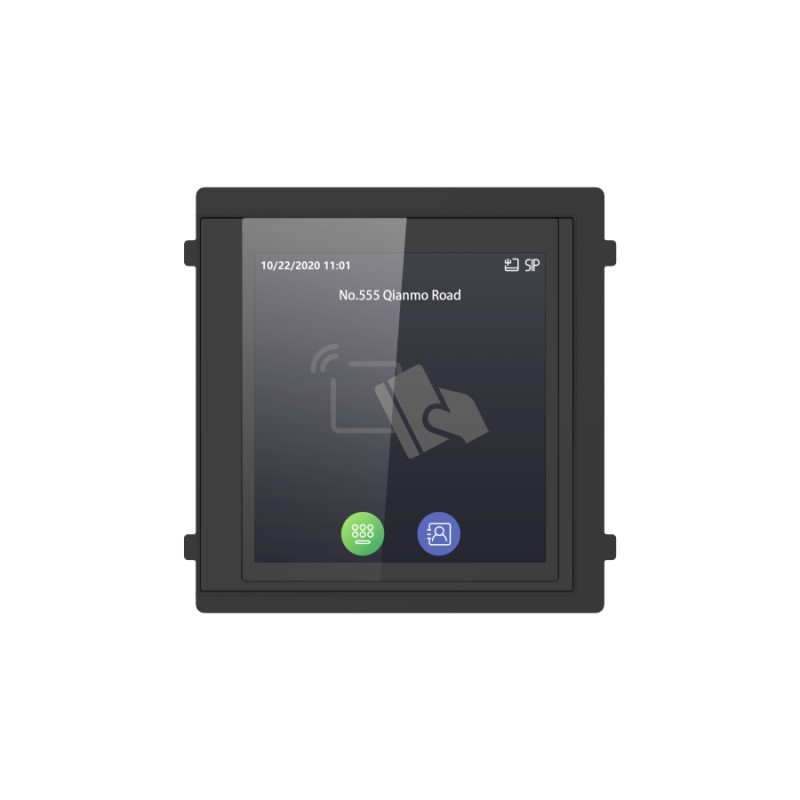

The HIK-KD-TDM is an all-in-one module that connects to the Hikvision 2nd generation modular door station, HIK-KD8003x. It comes with a 4 inch touch screen display that has different screen options to choose from, including number pad dial screen, pin code card unlock and contact list. It also supports a Mifare CSN RFID reader making this all-in-one feature packed module flexible and suitable for any location or environment.

• Touch Display module
• 4-inch touch screen
• Number pad display
• Contact list display
• CSN card reader

Datasheets

• HIK-KD-TDM Datasheet.pdf

• Screen size: 4-inch
• Screen resolution: 480 x 480
• Card reader: CSN (Mifare)
• Weather rating: IP65
• Anti-vandal rating: IK08
• Dimensions: 100 H x 100 L x 35 D (mm)
• Power source: 12V DC (provided by modular door station)
• Power consumption: 10W
