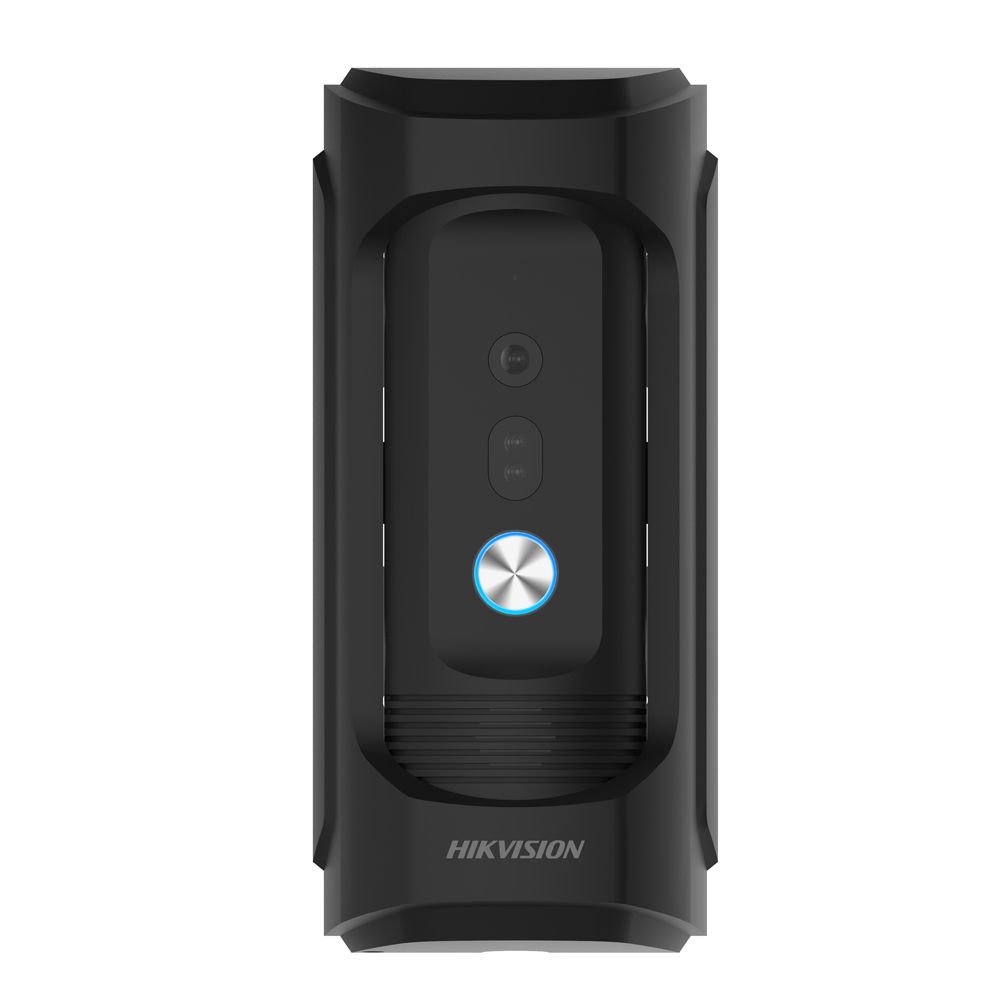

Hikvision 2nd Gen IP Intercom Anti-Vandal Door Station, 1 Button, PoE/12VDC, IP65, IK09

Hikvision's HIK-KB8113-IME1 anti-vandal intercom is made from zinc alloy material that can be mounted in 12 different positions in 7.5 degree increments, covering a range of 90 degrees. Being able to withstand harsher than normal conditions, such as weathered environments or physical tampering, it makes for the ideal intercom for high risk circumstances.

• Wide angle lens
• High definition camera
• Wide Dynamic Range
• Web based interface
• Standard PoE
• Infrared LED illumination
• Motion detection
• Noise suppression and echo cancellation
• Single button
• Anti-vandal protection

Datasheets

• HIK-KB8113-IME1 Datasheet.pdf

User Manuals

• HIK-KB8113-IME1 User Manual.pdf

• Camera: 2MP HD
• Video codec: H.264
• Resolution: 1920 x 1080 (main), 720 x 580 (sub)
• Field of view: 88 degrees (H), 45 degrees (V)
• Stream support: Hikvision protocol, RTSP & ONVIF
• Output: 1x 2A relay
• Protection rating: IP65, IK09
• Power: 48V PoE or 12V DC
• Dimensions: 161mm x 74mm x 54mm
