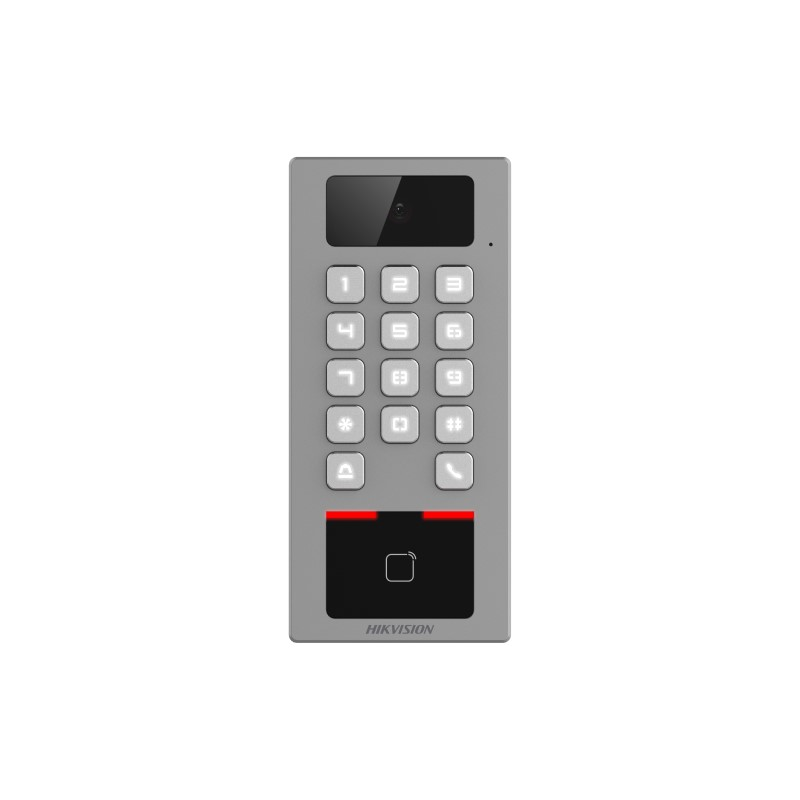

Hikvision Intercom, Apartment Door Station, Compact with Camera, CSN Card Reader

The HIK-K1T502DBWX-C is a compact apartment door station that is part of Hikvision's access control category. It supports a relay output to control a door as well as a Wiegand output to integrate to an access control system. It is weather rated, vandal resistant and compact making it an ideal door station that can be install in almost any location or environment.

• Audio and video communication
• Zinc alloy Casing
• Multiple authentication methods, including cards
• Connects to external access controller via Wiegand protocol
• Two-way audio via SIP 2.0 protocol

Datasheets

• HIK-K1T502DBWX-C Datasheet.pdf

• Camera resolution: 2 MP
• Network connectivity: Ethernet and Wi-Fi
• Output: 1x Relay & 1x Wiegand
• Weather rating: IP65
• Anti-vandal rating: IK09
• Power source: 12-24V DC
• Power consumption: 12W
• Card reader: CSN (Mifare)
• Dimensions: 177 H x 81 W x 24 D (mm)
