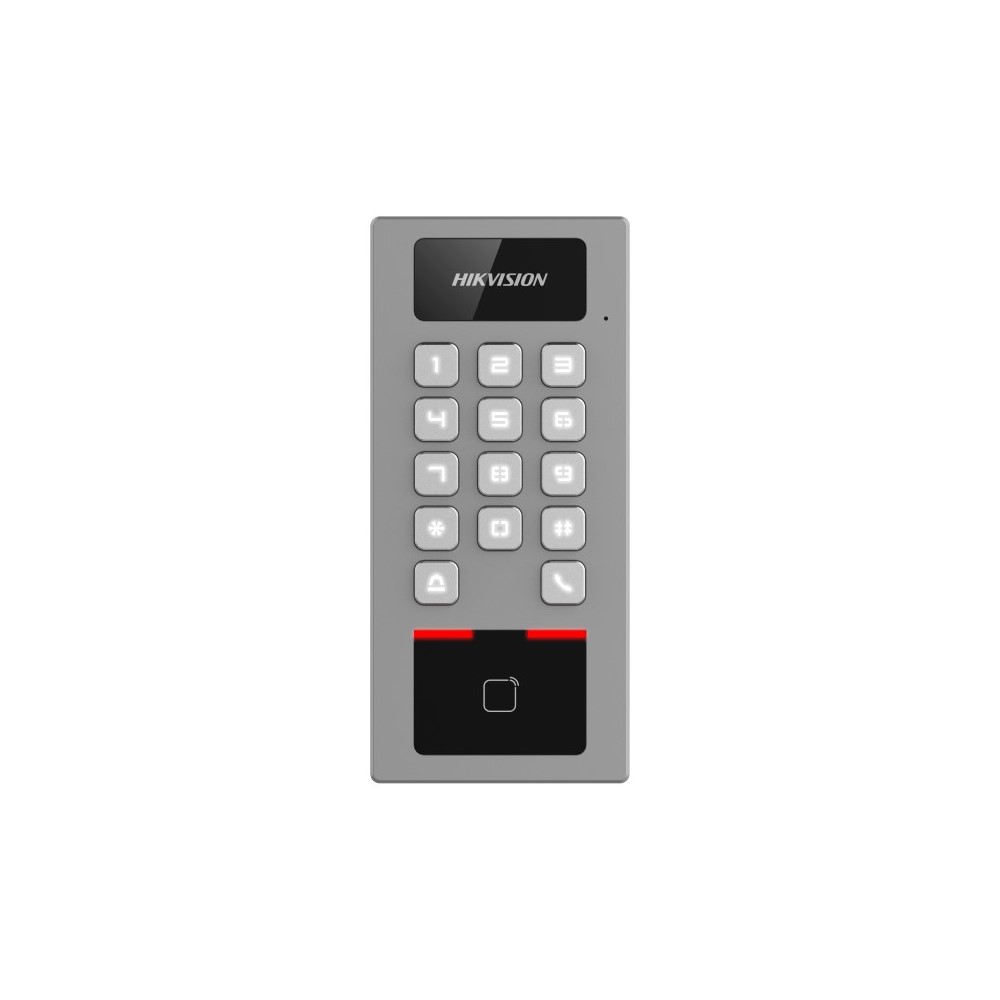

Hikvision Intercom, Apartment Door Station, Compact Audio Only, CSN Card Reader

The HIK-K1T502DBWX is an audio only compact apartment door station that is part of Hikvision's access control category. It supports a relay output to control a door strike and can connect to the 2nd generation IP intercom range. It is weather rated, vandal resistant and compact making it an ideal door station that can be install in almost any location or environment.

• Audio only communication
• Zinc alloy Casing
• Multiple authentication methods, including cards
• Connects to external access controller via Wiegand protocol
• Two-way audio via SIP 2.0 protocol

Datasheets

• HIK-K1T502DBWX Datasheet.pdf

• Network connectivity: Ethernet and WiFi
• Output: 1x Relay & 1x Wiegand
• Weather rating: IP65
• Anti-vandal rating: IK09
• Power source: 12-24V DC
• Power consumption: 12W
• Card reader: CSN (Mifare)
• Dimensions: 177 H x 81 W x 24 D (mm)
