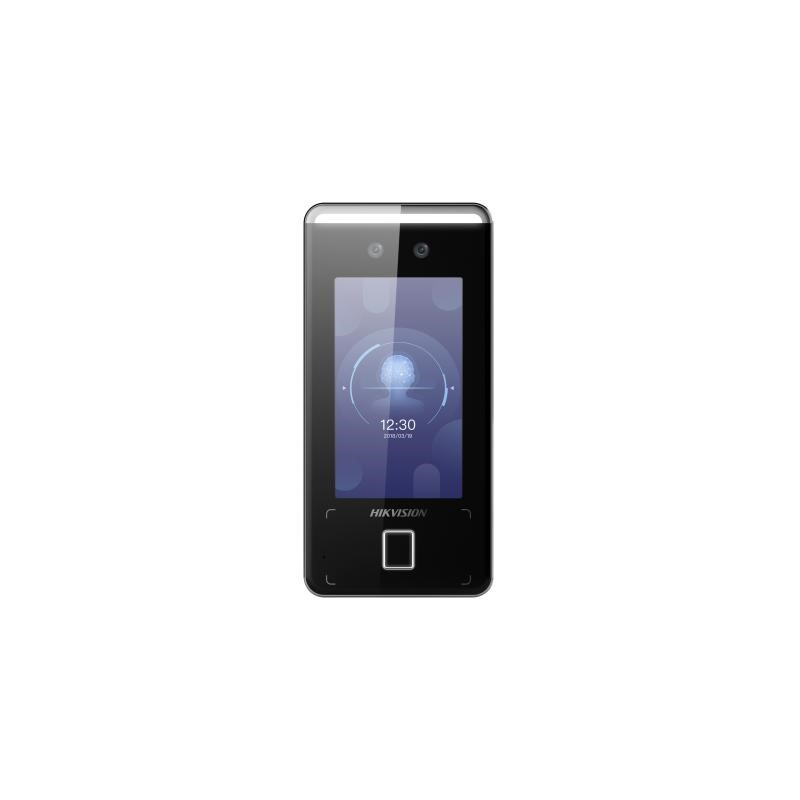

Hikvision 4.3 Inch Face Recognition Terminal, Touchscreen, WiFi, PoE

The Hikvision HIK-K1T341CMFW face recognition terminal adopts a deep learning algorithm. This helps to recognise the face faster with higher accuracy. It also supports multiple authentication modes such as face, card, fingerprint, and PIN authentication. This unit is perfect for sites such as apartments, enterprises and financial industries.

• Deep learning algorithm
• 4.3-inch capacitive touch screen
• 2 MP wide-angle dual lens
• 3,000 face capacity, 3,000 card capacity, 3,000 fingerprint capacity and 150,000 event capacity
• Authentication modes: face, fingerprint and card
• Supports mask wearing detection
• Supports connections to external access controller or Wiegand card reader via Wiegand protocol
• Supports connection to a secure door control unit via RS-485 protocol
• Two-way audio with client software, door station, indoor station, and main station

Datasheets

• HIK-K1T341CMxx Datasheet.pdf

User Manuals

• HIK-K1T341CMxx User Manual.pdf

• Display screen size: 4.3 inch
• Operation method: Capacitive touch screen
• Type IPS
• Resolution: 2 MP video stream: 720P
• FOV: HFOV = 41.5 Degrees; VFOV = 75.5Degrees; DFOV = 87Degrees
• Wired network: Supported
• Wi-Fi support: 2.4 G, 802.11b/g/n
• Network interface: RJ-45, 10/100 M self-adaptive
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1
• RS-485: 1, RS-485 Half duplex
• Wiegand: 1, Wiegand Hik 26bit, Hik 34bit
• Card type: M1 card
• Power supply: 12 VDC to 24 VDC, 2 A
• Power consumption: 10 W
• Working temperature: -30C to 60C
• IP level: IP65
• Hik-Connect supported
• QR code recognition supported
• Face anti-spoofing supported
