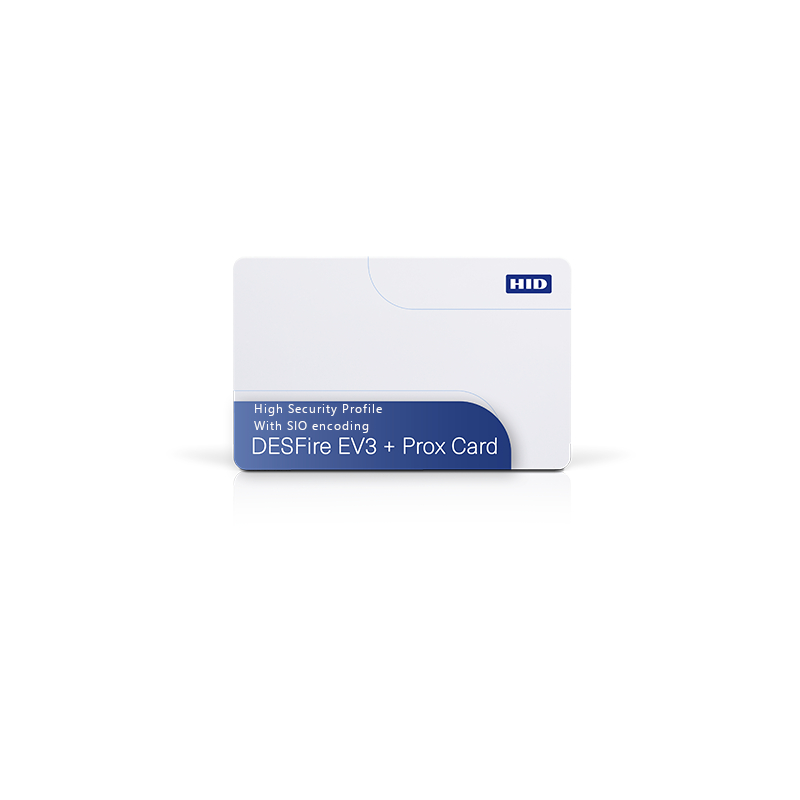

HID Mifare DESFire EV3 SIO Encoding + Prox, ISO Card, 8k, Dynamic CSN, MOQ 100

HID Global's DESFire EV3 + Prox card is designed to enable security system owners with a smooth migration path from legacy low-frequency 125 kHz-based systems to a modern and secure credential technology.

The HID-812HPROG high security profile credential utilises the greatest security features with HID Signo readers on the latest firmware and is custom programmed by HID.

HID DESFire EV3 cards leverage security features including AES128 encryption, secure channel-based file transfer and proximity check to protect card data from attacks.

This credential would typically be used on sites transitioning from ProxPoint or multiClass SE RP10/9xxPxx readers to Signo readers and is custom programmed by HID.

• Feature-rich security
• Secure Identity Object (SIO) data model for added key diversification, authentication signatures and encryption
• Flexibility in three profiles to ensure the best fit for your access control system
• Backwards compatibility with EV1 and EV2 based solutions
• 125KHz Low Frequency HID Prox support

Datasheets

• HID-81xHPROG Datasheet.pdf

• Operating frequency: 13.56MHz
• Communication protocol compliance: ISO14443A-4
• SIO application features: AES-128 crypto, enhanced secure channel and proximity check
• Communication speed: up to 848kbps
• Memory Size/Type: 8K EEPROM
• CSN/UID: static 7-byte (56-bit)
• Operating temperature: -35 degrees to 50 degrees Celsius
• Weight: 5.5g
