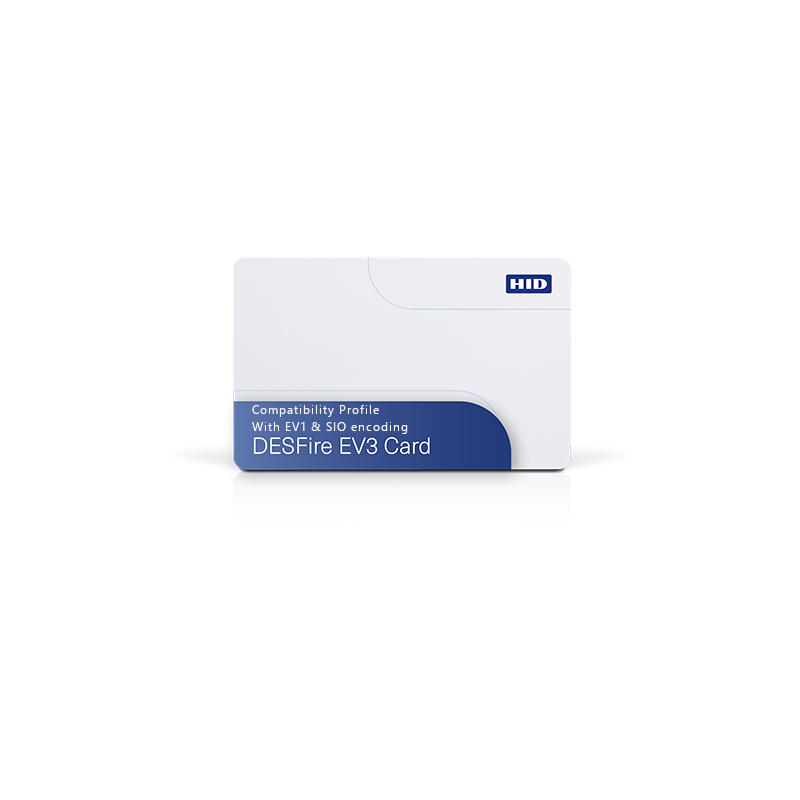

HID Mifare DESFire EV1 + EV3 SIO Encoding, ISO Card, 8k, Static CSN, Site Code 22
DESFire EV3 has been added to the MIFARE DESFire family of smart card chipsets from NXP. This addition introduces more features that HID have taken full advantage of.
The HID-801FPGGAN compatibility profile credential maintains backwards compatibility with iCLASS SE R10/9xxNxx and multiCLASS SE RP10/9xxPxx readers and is stocked with default programming of site code 22.
HID DESFire EV3 cards leverage security features including AES128 encryption, secure channel-based file transfer and proximity check to protect card data from attacks.
- Feature-rich security
- Secure Identity Object (SIO) data model for added key diversification, authentication signatures and encryption
- Flexibility in three profiles to ensure the best fit for your access control system
- Backwards compatibility with EV1 and EV2 based solutions
- Operating frequency: 13.56MHz
- Communication protocol compliance: ISO14443A-4
- SIO application features: 2TDEA crypto / MAC communication
- Communication speed: up to 848kbps
- Memory size/type: 8K EEPROM
- CSN/UID: randomised 4-byte (32-bit)
- Operating temperature: -35 degrees to 50 degrees Celsius
- Weight: 5.5g
Datasheets
DESFire EV3 has been added to the MIFARE DESFire family of smart card chipsets from NXP. This addition introduces more features that HID have taken full advantage of.
The HID-801FPGGAN compatibility profile credential maintains backwards compatibility with iCLASS SE R10/9xxNxx and multiCLASS SE RP10/9xxPxx readers and is stocked with default programming of site code 22.
HID DESFire EV3 cards leverage security features including AES128 encryption, secure channel-based file transfer and proximity check to protect card data from attacks.
- Operating frequency: 13.56MHz
- Communication protocol compliance: ISO14443A-4
- SIO application features: 2TDEA crypto / MAC communication
- Communication speed: up to 848kbps
- Memory size/type: 8K EEPROM
- CSN/UID: randomised 4-byte (32-bit)
- Operating temperature: -35 degrees to 50 degrees Celsius
- Weight: 5.5g
