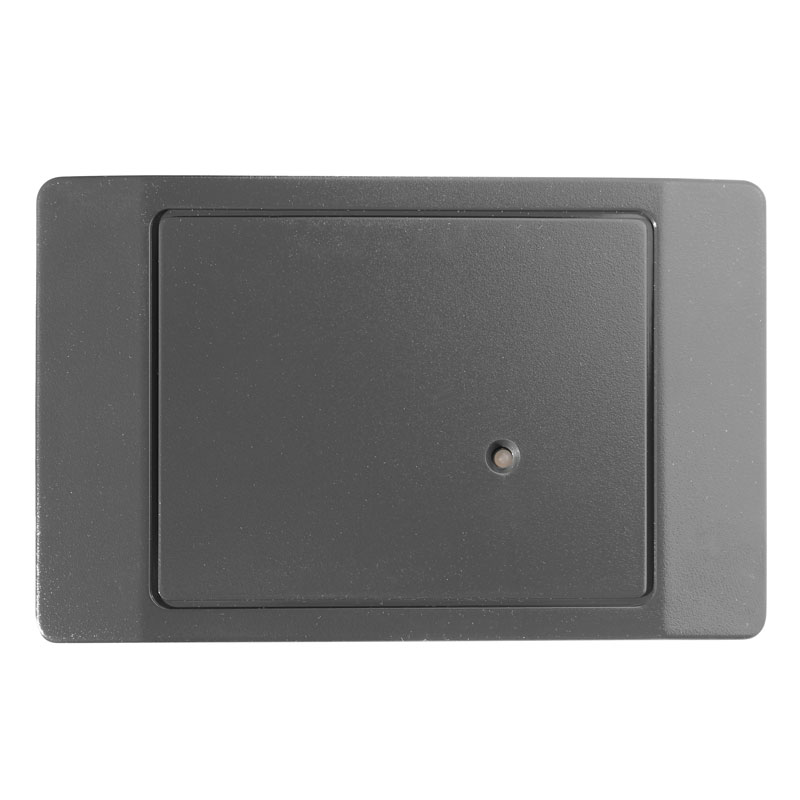

Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output), Grey

Providing performance and reliability, HID's attractive, unobtrusive ThinLine II proximity card reader is housed in a two-piece, weatherproof secure potted enclosure the size of most standard U.S. switch plates. Available with Wiegand or Clock-and-Data interface. Potted reader suitable for indoor or outdoor use.

• Easily installed and maintained with the use of replaceable covers
• Features include multicolour LED and internal control or host control of the LED and beeper
• Mounts directly on metal with minimal impact on the read range performance.

Datasheets

• HID Prox Reader Comparison Chart.pdf
• HID-5395 Datasheet.pdf

• Dimensions: 11.9 x 7.6 x 1.7cm
• Input Voltage: 5-16V DC
• Current (DC): Average: 30 mA (5V DC); 20 mA (12V DC), Peak: 110 mA (5V DC); 115 mA (12V DC)
