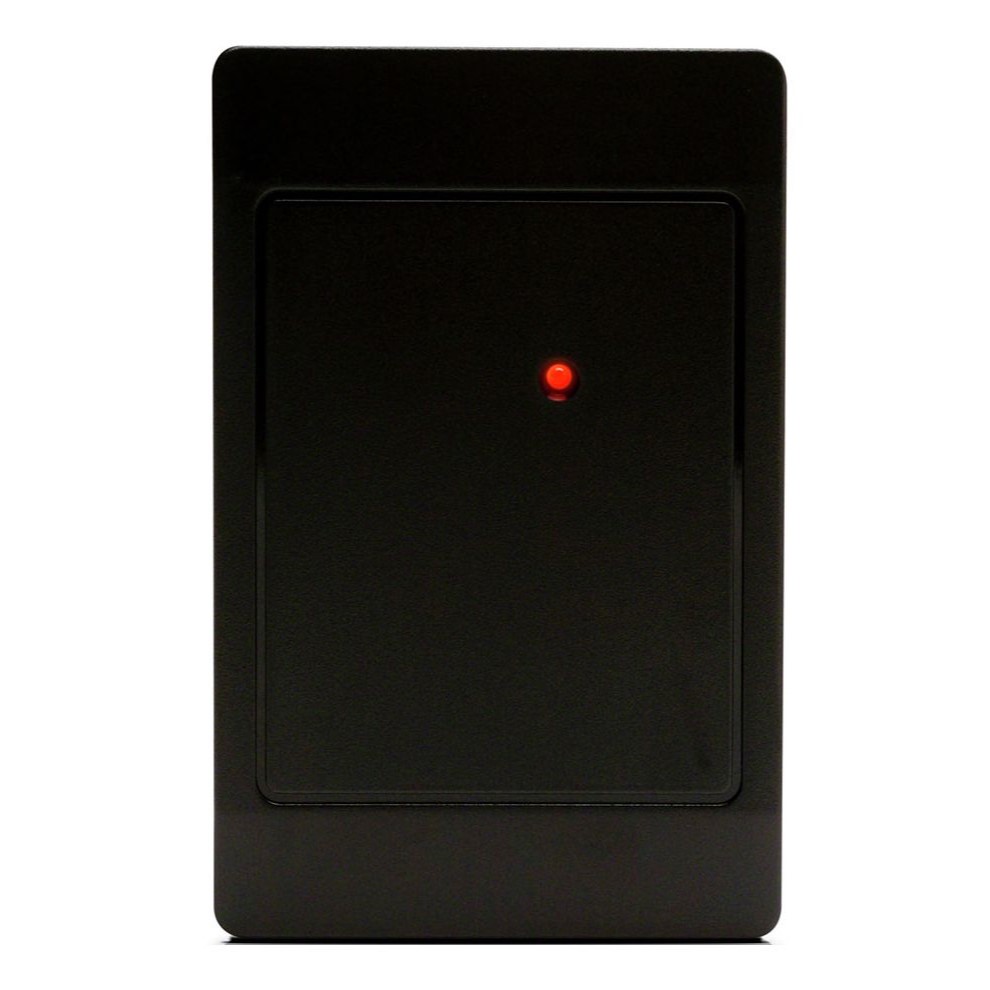

*SpOrd* Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output), Black

*SpOrd* Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output), Black



Code: HID-5395BLK
Brand: HID
Product Details
*SpOrd* Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output), Black


Providing performance and reliability, HIDs attractive, unobtrusive ThinLine II proximity card reader is housed in a two-piece, weatherproof secure potted enclosure the size of most standard U.S. switch plates. Available with Wiegand or Clock-and-Data interface. Potted reader suitable for indoor or outdoor use.

  • Easily installed and maintained with the use of replaceable covers
  • Features include multicolour LED and internal control or host control of the LED and beeper
  • Mounts directly on metal with minimal impact on the read range performance.
  • Dimensions: 11.9 x 7.6 x 1.7cm
  • Input Voltage: 5-16V DC
  • Current (DC): Average: 30 mA (5V DC); 20 mA (12V DC), Peak: 110 mA (5V DC); 115 mA (12V DC)
