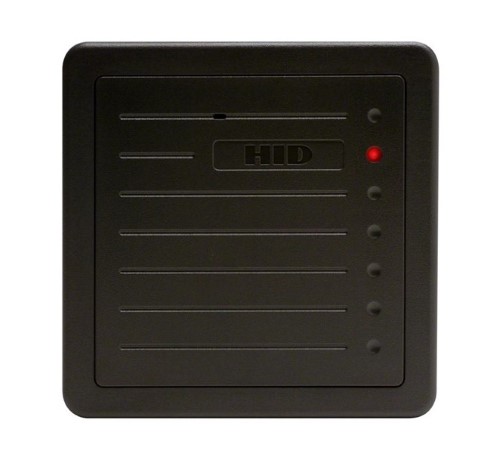

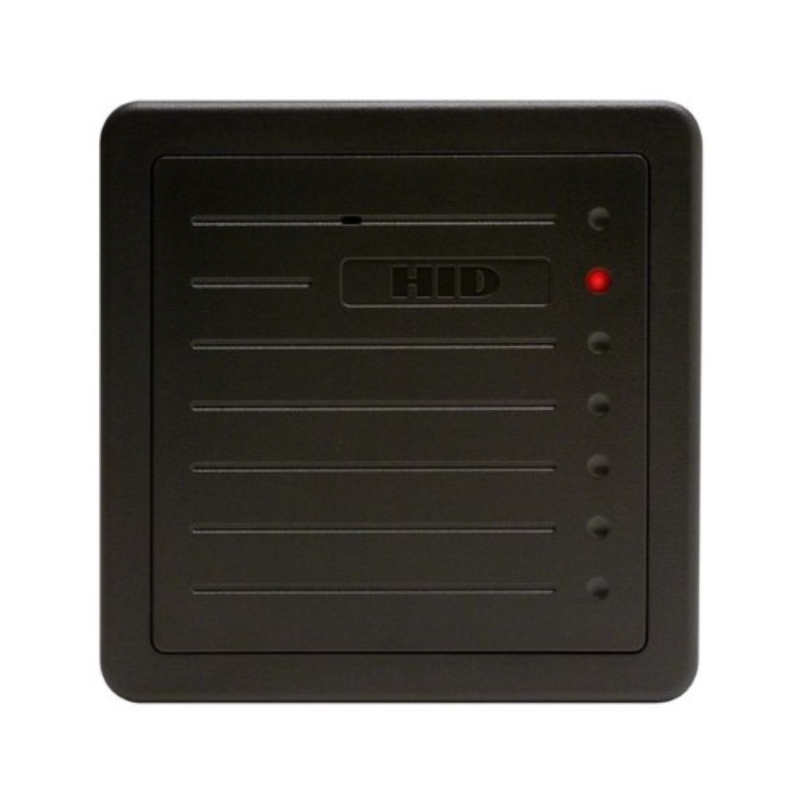

ProxPro 125 kHz Wall Switch Proximity Reader (RS232 Serial Output)

The ProxPro proximity card reader's weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is ideal for applications requiring a larger read range.

• Weather and vandal-resistant for indoor/outdoor use
• Features multicolor LED, internal or host control of the LED, and/or beeper and a beeper switch for silent operation.
• Offers an optional, fully integrated personal identification number keypad for heightened security.
• Can be mounted to glass (using the optional glass mounting kit).
• Includes a tamper switch to provide notification of reader tampering.

Datasheets

• HID Prox Reader Comparison Chart.pdf
• HID-535x Datasheet.pdf

• Dimensions: 12.7 x 12.7 x 2.54 cm
• Operating temperature: -30deg to 65degC
• Input voltage: 10-28.5V DC (Linear power supplies recommended)
• Current: Average 100mA (12V DC), Peak 120mA (24V DC)
