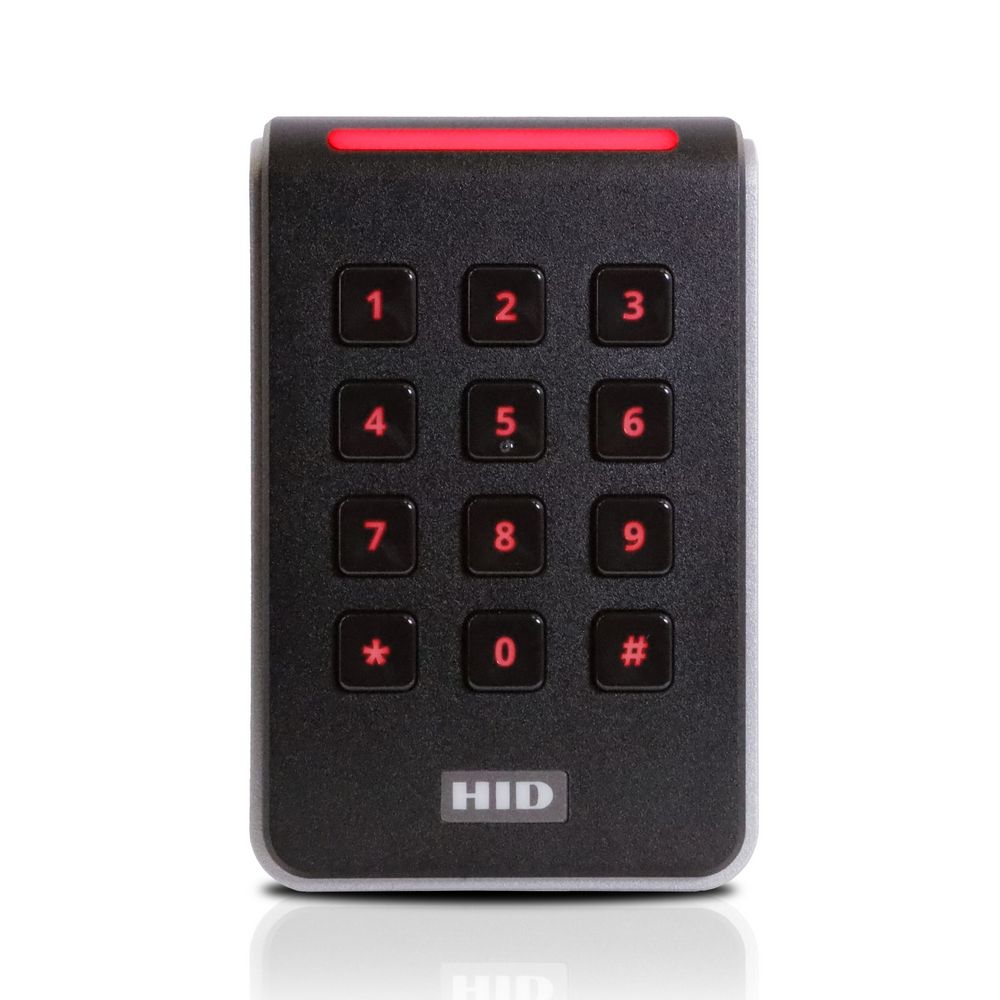

HID Signo 40T Wide 3x4 Tactile Keypad Reader, Smart Profile, Terminal Block

HID Signo is the signature line of physical access control readers from HID. The versatility, performance and connected capabilities of HID Signo readers set an industry benchmark for a highly adaptable, interoperable and secure approach to electronic access control.

The tactile keypad features mechanical buttons for durability in extreme high or low temperatures. The HID Signo range complements the Inner Range Integriti and Inception systems for a fully comprehensive and compatible solution.

For more information visit HIDGlobal.com

• Multi-Layered security to ensure data authenticity and privacy
• EAL5+ Certified Secure Element Hardware
• Native OSDP secure channel capability
• Trusted secure authentication using the SIO data model
• Go mobile with native Bluetooth and NFC support
• Robust outdoor performance with an IP65 rating
• Easily and securely manage using HID Reader Manager app
• Update firmware in response to threats
• Deactivate legacy credential technology to conclude secure migration

• Operating voltage: 12V DC
• Standby current: 90mA
• Average current: 1200mA
• Max current: 250mA
• Operating temp: -35 degrees C to +66 degrees C
• Dimensions: 80mm x 122.5mm x 24.5mm
• Weight: 165g
• Wiring: Terminal block

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

• iClass Family
• iClass (legacy)
• iClass SE
• SEOS
• Mifare Family
• Classic (with SIO encoding)
• EV1/EV2 (with SIO encoding)
