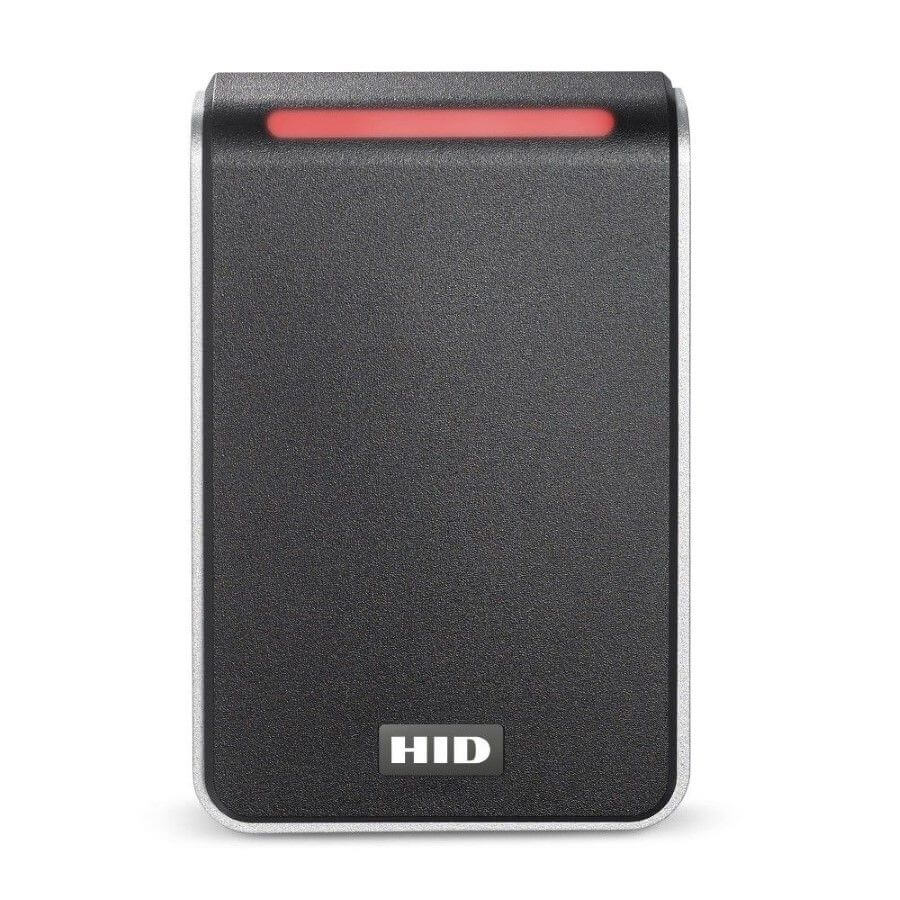

HID Signo 40 Wide Reader, Standard Profile, Terminal
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
AVAILABLE TO ORDER
|
| Waterloo - NSW |
AVAILABLE TO ORDER
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Dudley Park - SA |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
AVAILABLE TO ORDER
|
| Mulgrave - VIC |
AVAILABLE TO ORDER
|
| Balcatta - WA |
AVAILABLE TO ORDER
|
The HID-40TKS-00 combines versatility, performance and connected capabilities with the Signo range, creating a flexible and powerful access control solution. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.
The HID-40TKS-00 wide profile reader is compatible with all high frequency technologies and has mobile capabilities right out of the box. Its versatility makes it suitable for most installations.
- Operating voltage: 12V DC
- Standby current: 65mA
- Average current: 75mA
- Max current: 250mA
- Operating temp: -35 degrees C to +66 degrees C
- Dimensions: 80mm x 121.5mm x 19.5mm
- Weight: 120g
- Wiring: Terminal block
Supported Technologies - Standard Profile:
13.56MHz High Frequencies
- iClass Family
- iClass (legacy)
- iClass SE
- SEOS
- Mifare Family
- Classic (with SIO encoding)
- EV1/EV2 (with SIO encoding)
- CSN/UID
125KHz Low Frequencies
- HID PROX
- Indala (ASP10022 26-bit open format)
- EM (EM4100 32-bit format)
- Mobile support right out of the box
- Wide profile
- Terminal block wiring
- Configurable with Mobile Reader Manager App:
- LED colour
- OSDP - Address and baud rate
- CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
- Technology suppression
- Load mobile keys
- Bluetooth power range
