HID Signo 40 Wide Reader, Smart Profile, Pigtail
Brand: HID
Product Details

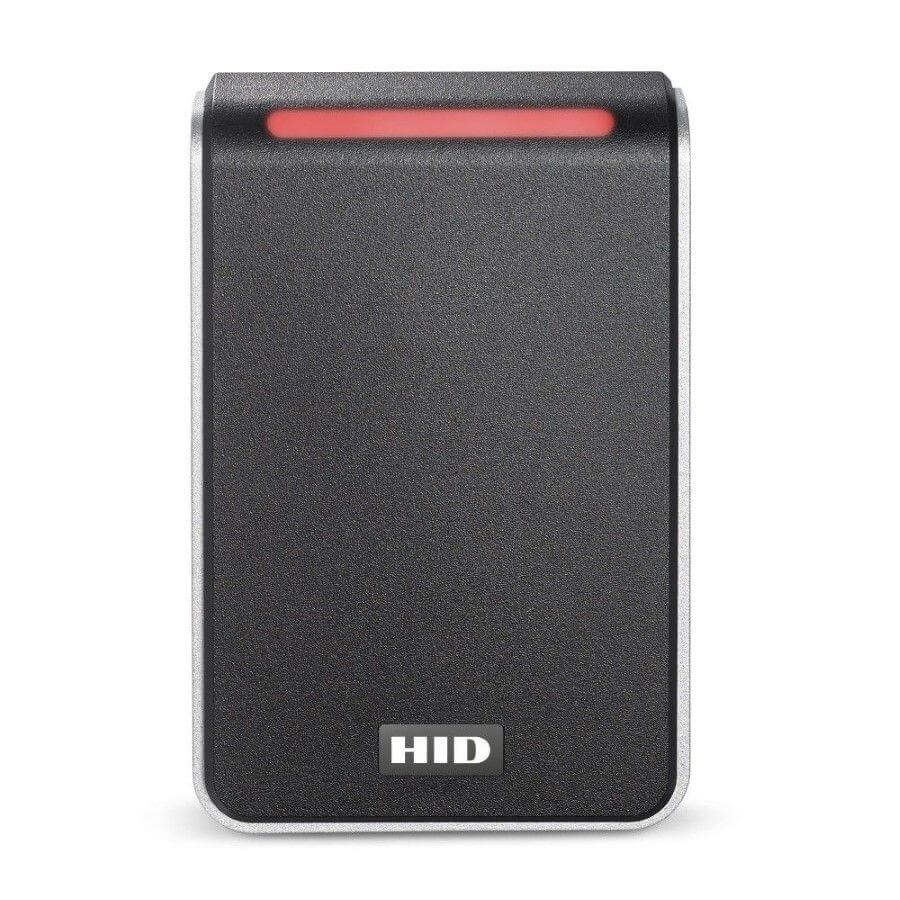

HID Signo 40 Wide Reader, Smart Profile, Pigtail
The HID-40NKS-02 combines versatility, performance and connected capabilities with the Signo range, creating a flexible and powerful access control solution. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.
The HID-40NKS-02 wide profile reader is compatible with all high frequency technologies and has mobile capabilities right out of the box. Its versatility makes it suitable for most installations.
- Mobile support right out of the box
- Wide profile
- Pigtail wiring
- Configurable with Mobile Reader Manager App:
- LED colour
- OSDP - Address and baud rate
- CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
- Technology suppression
- Load mobile keys
- Bluetooth power range
- Operating voltage: 12V DC
- Standby current: 65mA
- Average current: 75mA
- Max current: 250mA
- Operating temp: -35 degrees C to +66 degrees C
- Dimensions: 80mm x 121.5mm x 19.5mm
- Weight: 140g
- Wiring: Pigtail
Supported Technologies
13.56MHz High Frequencies
- iClass Family
- iClass (legacy)
- iClass SE
- SEOS
- Mifare Family
- Classic (with SIO encoding)
- EV1/EV2 (with SIO encoding)
