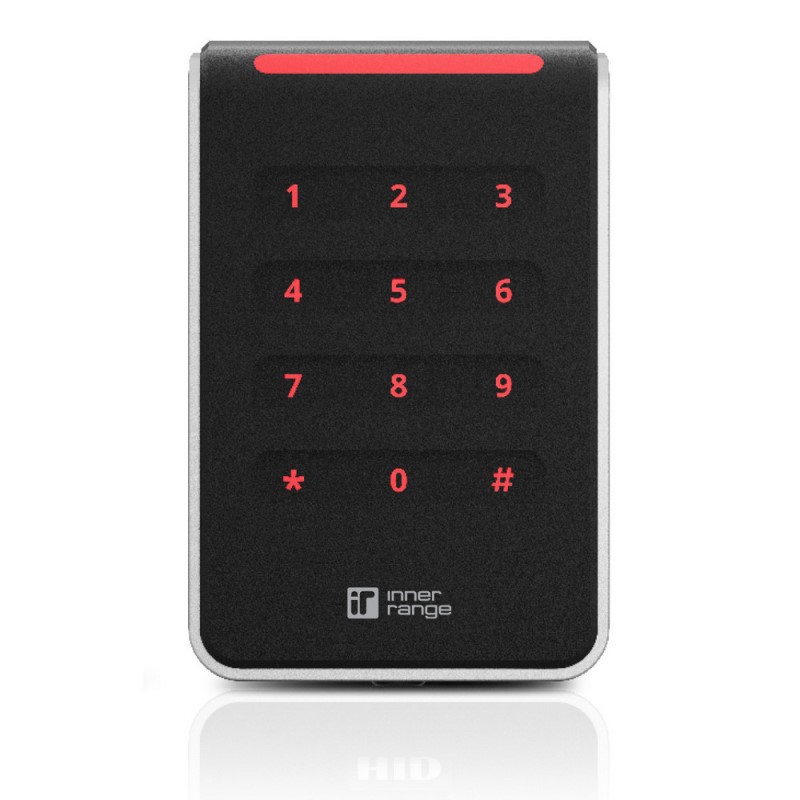

HID Hybrid SIFER, Signo 40K Wide Keypad Reader, CSN & APB OFF, OSDP, IR Logo

The HID SIFER Hybrid reader supports the all the common low and high frequency technologies, as well as SIFER-P - Inner Range's proprietary credential. It also comes with Inner Range's default settings for the Integriti and Inception controllers, such as AntiPassBack to fasten the 3-badge arming action.

This reader is the perfect solution for base buildings or multi-technology sites, as well as sites that plan to upgrade from dated technologies to modern, more secure technologies such as SEOS, HID Mobile or SIFER-P.

Both Inner Range and HID are leaders in the access control industry, providing cutting-edge technology and robust features, suitable for almost any environment. Future proof your access control system with the most trusted solutions, today.

• SIFER-P only credential technology
• HID Mobile ready
• HID Reader Manager app configurable
• Switch form factor
• Multi-colour LED
• Keypad for PIN authentication

Datasheets

• HID Hybrid Signo SIFER Readers Datasheet.pdf

• Operating voltage: 12V DC
• Standby current: 70mA
• Average current: 80mA
• Max current: 250mA
• Operating temp: -35 degrees C to +66 degrees C
• Dimensions: 80mm x 121.5mm x 21.5mm
• Weight: 160g
• Wiring: Pigtail

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

• iClass Family
• iClass (legacy)
• iClass SE
• SEOS
• Mifare Family
• SIFER-P only (Inner Range proprietary credential)
• Classic (with SIO encoding)
• EV1/EV2 (with SIO encoding)
• CSN/UID

125KHz Low Frequencies

• HID PROX
• Indala (ASP10022 26-bit open format)
• EM (EM4100 32-bit format)
