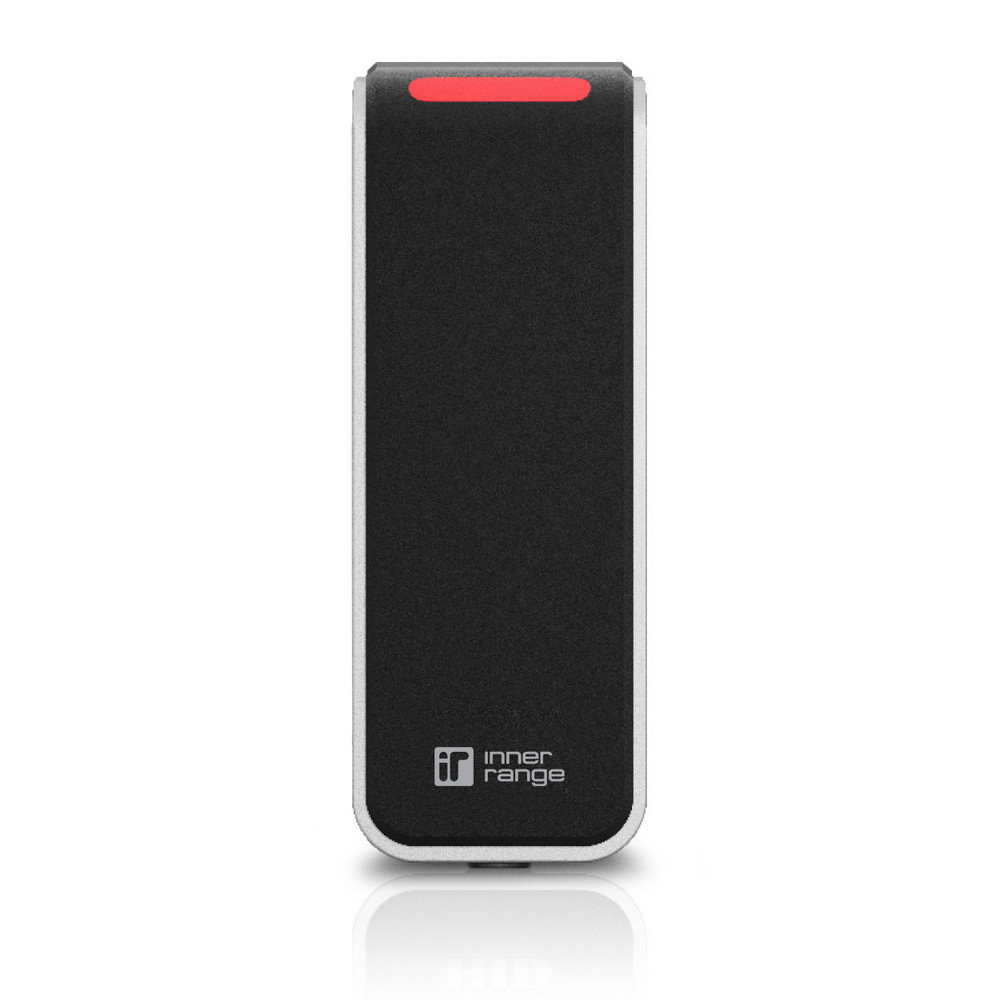

HID Signo 20 Reader, Standard Profile, Pigtail, CSN OFF, OSDP, IR Logo

The HID Signo readers are advanced access control devices designed for versatility and security. They support multiple credential technologies, including mobile access via Bluetooth and NFC, and Apple Wallet credentials. In partnership with Inner Range, this range of readers are pre-configured to ideal settings for connecting directly to Integriti or Inception, exclusive to Wesco Australia. These readers feature ultra-secure cryptographic key storage, surface detection for optimized read range, and support for the Open Supervised Device Protocol (OSDP) for secure communication and remote management. With a sleek, modern design, HID Signo readers are suitable for various installations, enhancing both security and convenience in access control systems.

• Mobile support right out of the box
• Sleek and slim profile
• Pigtail wiring
• Configurable with Mobile Reader Manager App:
• LED colour
• OSDP - Address and baud rate
• CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
• Technology suppression
• Load mobile keys

• Operating voltage: 12V DC
• Standby current: 60mA
• Average current: 70mA
• Max current: 250mA
• Operating temp: -35 degrees C to +66 degrees C
• Dimensions: 45mm x 121.5mm x 19.5mm
• Weight: 95g
• Wiring: Pigtail

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

• iClass Family
• iClass (legacy)
• iClass SE
• SEOS
• Mifare Family
• Classic (with SIO encoding)
• EV1/EV2 (with SIO encoding)
• CSN/UID

125KHz Low Frequencies

• HID PROX
• Indala (ASP10022 26-bit open format)
• EM (EM4100 32-bit format)
