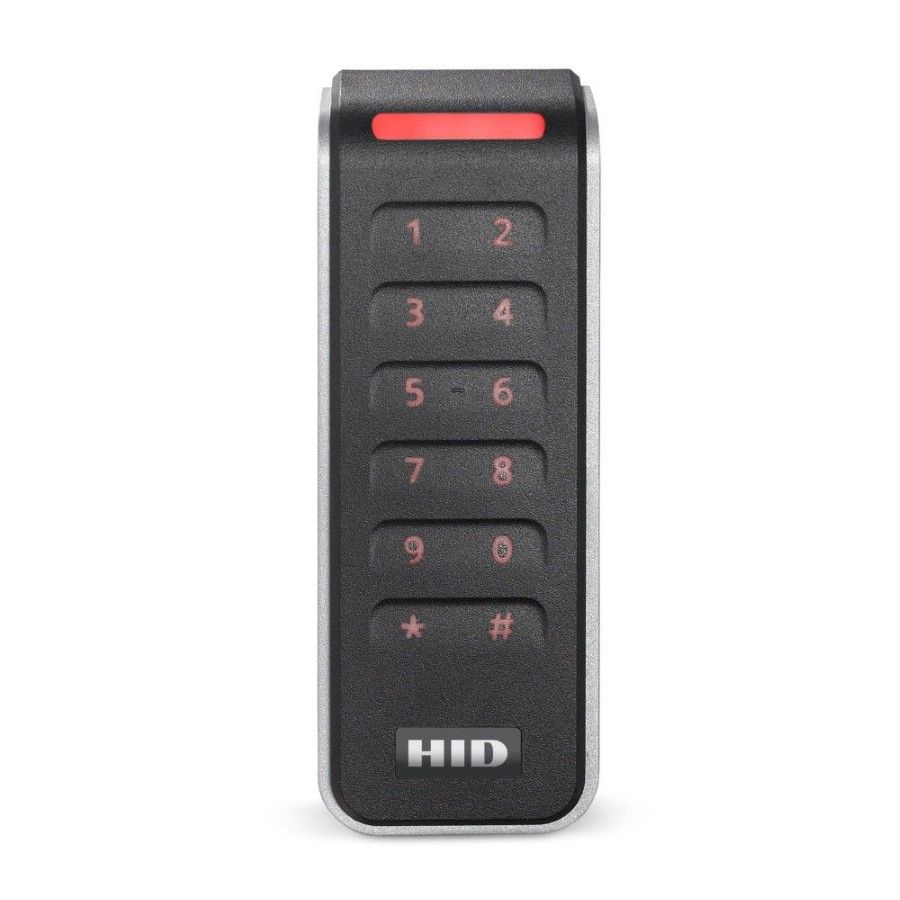

HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Terminal

HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Terminal



Code: HID-20KTKS-00
Brand: HID
Product Details
HID Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Terminal


The HID-20KTKS-00 combines versatility, performance and connected capabilities with the Signo range, creating a flexible and powerful access control solution. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

The HID-20KTKS-00 slim profile reader is compatible with all high frequency technologies and has mobile capabilities right out of the box. Its versatility makes it suitable for most installations, especially as it includes a 2 x 6 keypad.

  • Mobile support right out of the box
  • Sleek and slim profile
  • Terminal block wiring
  • Keypad
  • Configurable with Mobile Reader Manager App:
    • LED colour
    • OSDP - Address and baud rate
    • Keypad output (4 bit buffered or PIN as 26-bit Wiegand)
    • CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
    • Technology suppression
    • Load mobile keys
    • Bluetooth power range
  • Operating voltage: 12V DC
  • Standby current: 65mA
  • Average current: 75mA
  • Max current: 250mA
  • Operating temp: -35 degrees C to +66 degrees C
  • Dimensions: 45mm x 121.5mm x 21.5mm
  • Weight: 90g
  • Wiring: Terminal block

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

  • iClass Family
  • iClass (legacy)
  • iClass SE
  • SEOS
  • Mifare Family
  • Classic (with SIO encoding)
  • EV1/EV2 (with SIO encoding)
  • CSN/UID

125KHz Low Frequencies

  • HID PROX
  • Indala (ASP10022 26-bit open format)
