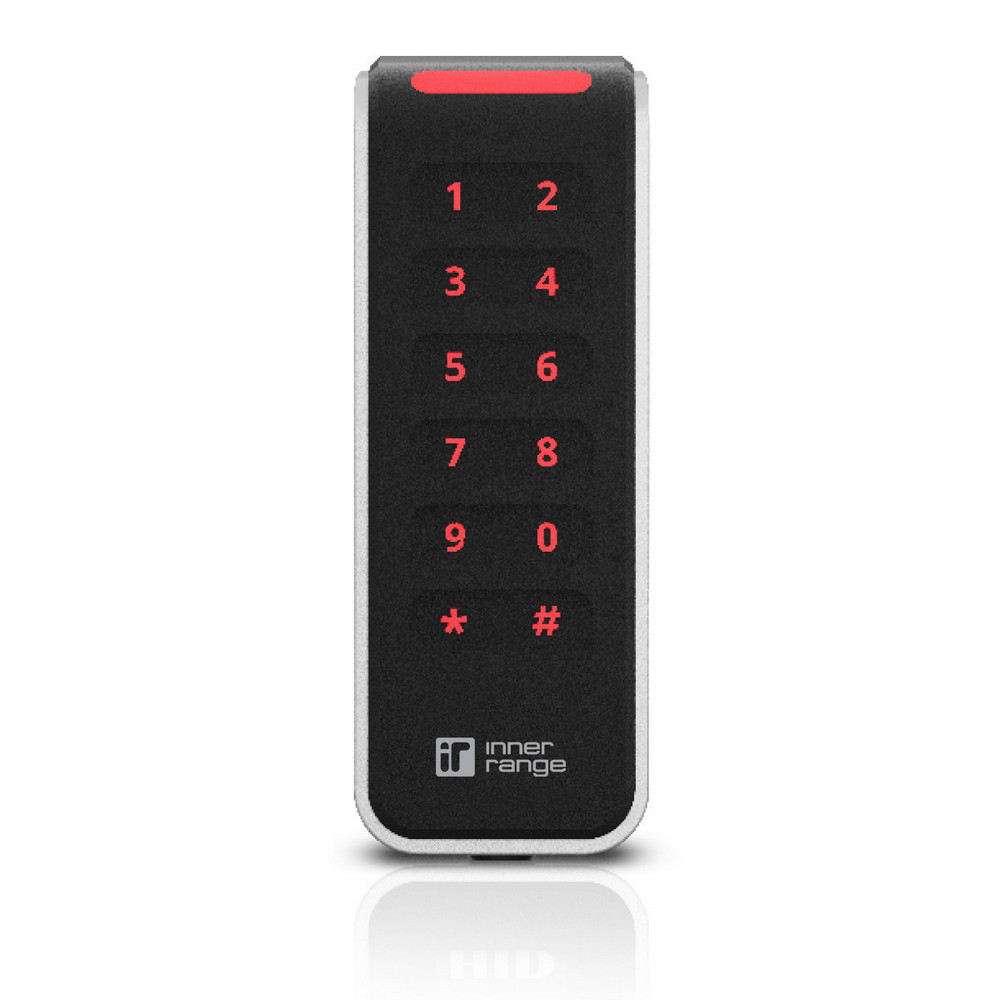

HID Hybrid SIFER, Signo 20K Wide Keypad Reader, CSN & APB OFF, OSDP, IR Logo

HID-20KNKS-IR
AVAILABLE TO ORDER
HID Hybrid SIFER, Signo 20K Wide Keypad Reader, CSN & APB OFF, OSDP, IR Logo

The HID SIFER Hybrid reader supports the all the common low and high frequency technologies, as well as SIFER-P - Inner Range's proprietary credential. It also comes with Inner Range's default settings for the Integriti and Inception controllers, such as AntiPassBack to fasten the 3-badge arming action.

This reader is the perfect solution for base buildings or multi-technology sites, as well as sites that plan to upgrade from dated technologies to modern, more secure technologies such as SEOS, HID Mobile or SIFER-P.

Both Inner Range and HID are leaders in the access control industry, providing cutting-edge technology and robust features, suitable for almost any environment. Future proof your access control system with the most trusted solutions, today.

  • SIFER-P only credential technology
  • HID Mobile ready
  • HID Reader Manager app configurable
  • Mullion form factor
  • Multi-colour LED
  • Keypad for PIN authentication

  • Operating voltage: 12V DC
  • Standby current: 65mA
  • Average current: 75mA
  • Max current: 250mA
  • Operating temp: -35 degrees C to +66 degrees C
  • Dimensions: 45mm x 121.5mm x 21.5mm
  • Weight: 110g
  • Witing: Pigtail
  • Suited for mullion-mount door installations or any flat surface mounting

Supported Technologies - Standard Profile:

13.56MHz High Frequencies

  • iClass Family
  • iClass (legacy)
  • iClass SE
  • SEOS
  • Mifare Family
  • SIFER-P only (Inner Range proprietary credential)
  • Classic (with SIO encoding)
  • EV1/EV2 (with SIO encoding)
  • CSN/UID

125KHz Low Frequencies

  • HID PROX
  • Indala (ASP10022 26-bit open format)
