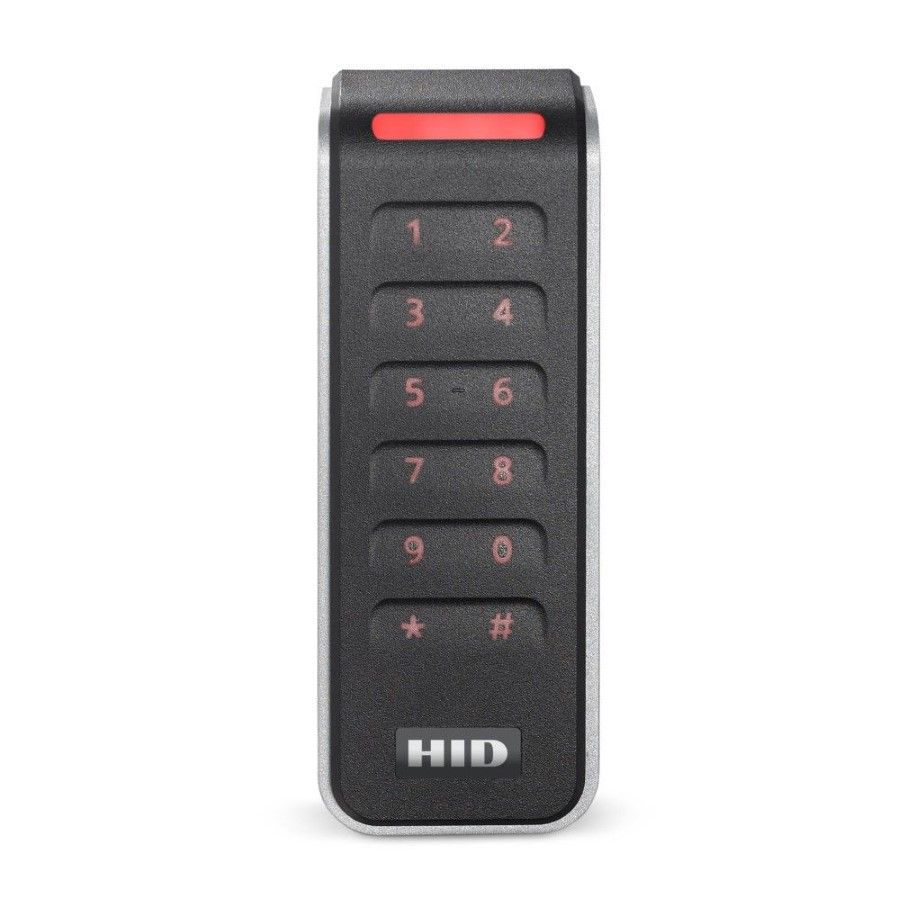

HID Signo 20K Slim 2x6 Keypad Reader, Smart Profile, Pigtail

HID-20KNKS-02
AVAILABLE TO ORDER
HID Signo 20K Slim 2x6 Keypad Reader, Smart Profile, Pigtail
Warehouse Status
Seven Hills - NSW
IN STOCK
Waterloo - NSW
AVAILABLE TO ORDER
Fyshwick - ACT
AVAILABLE TO ORDER
Loganholme - QLD
AVAILABLE TO ORDER
Dudley Park - SA
AVAILABLE TO ORDER
Tulla Central Warehouse- VIC
AVAILABLE TO ORDER
Mulgrave - VIC
IN STOCK
Balcatta - WA
IN STOCK
Canning Vale - WA
IN STOCK

The HID-20KNKS-02 combines versatility, performance and connected capabilities with the Signo range, creating a flexible and powerful access control solution. This range provides a simple and effective approach to secure access control for almost any scenario. Signo readers support past, present and future technologies, making this the perfect reader to transition to a secure authentication technology. The readers can be remotely managed via the reader manager app which empowers the installer to make necessary changes anytime, anywhere.

  • Operating voltage: 12V DC
  • Standby current: 65mA
  • Average current: 75mA
  • Max current: 250mA
  • Operating temp: -35 degrees C to +66 degrees C
  • Dimensions: 45mm x 121.5mm x 21.5mm
  • Weight: 110g
  • Wiring: Pigtail

Supported Technologies

13.56MHz High Frequencies

  • iClass Family
  • iClass (legacy)
  • iClass SE
  • SEOS
  • Mifare Family
  • Classic (with SIO encoding)
  • EV1/EV2 (with SIO encoding)

  • Mobile support right out of the box
  • Sleek and slim profile
  • Pigtail wiring
  • Keypad
  • Configurable with Mobile Reader Manager App:
    • LED colour
    • OSDP - Address and baud rate
    • Keypad output (4 bit buffered or PIN as 26-bit Wiegand)
    • CSN output (32-bit, 34-bit, 40-bit, 37-bit, 56-bit or 26-bit with site code)
    • Technology suppression
    • Load mobile keys
    • Bluetooth power range
