iClass Embeddable Coil for ProKey Remotes, High Security, Custom Programmed

Home // Access Control // Readers & Credentials // HID // HID iCLASS // iCLASS Composite Embeddable Credentials // iClass Embeddable Coil for ProKey Remotes, High Security, Custom Programmed

Code: HID-2070HSEC
Brand: HID
Product Details

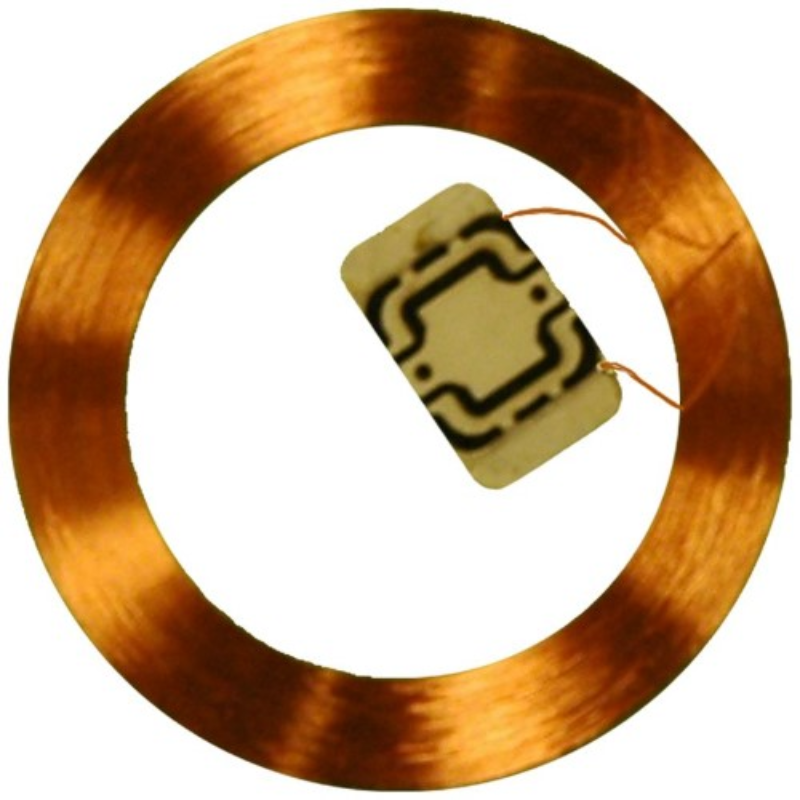

iClass Embeddable Coil for ProKey Remotes, High Security, Custom Programmed

Overview
Features
Specifications
Downloads

The HID iCLASS transponder can be used in diverse tagging applications such as long-range gate transmitters, containers and keyfobs. It's easy to add to any device by gluing, molding or fastenng the eUnit Tag proximity transponder to any nonmetallic housing.

13.56 MHz read/write contactless smart card technology provides high-speed, reliable communications with high data integrity
RF-programmable for ease of encoding with HID's iCLASSProgrammer
Compatible with existing HID iCLASS cards and readers
Implantable in all nonmetallic materials

Datasheets

HID-2070 Datasheet.pdf

Diameter: 19.02 mm
Thickness: 0.4318 mm
Weight: 0.23g
