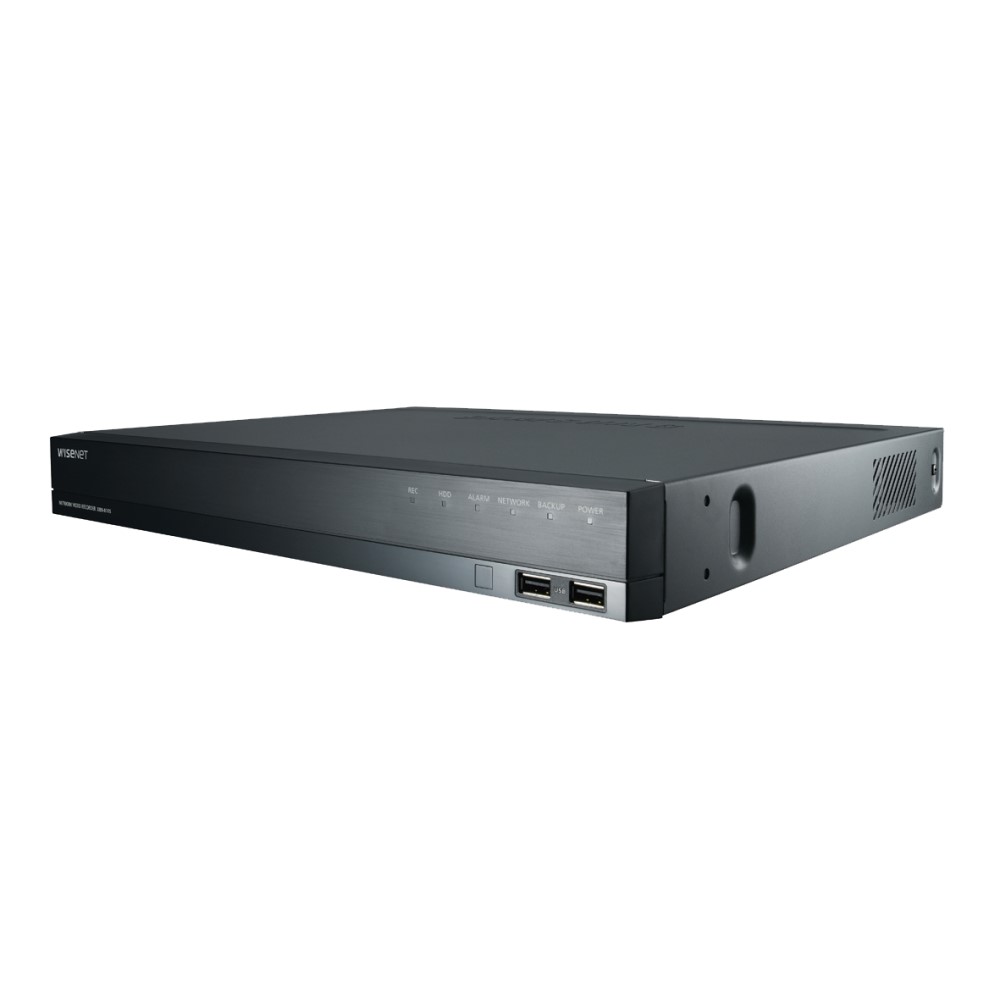

The Hanwha HAN-XRN-820S is an 8 channel NVR with the ability to record up to 32-megapixels and can produce a HDMI video output at a resolution of up to 3840 x 2160. The NVR can achieve plug and play via the 8 PoE ports, which are capable of up to 100Mbps. Supporting compression of H.265, this NVR can also sufficiently reduce storage space and costs by up to 50 percent, making it a cost-effective solution for a variety of security scenarios.

• Up to 8ch, 32MP camera supported
• H.265, H.264, MJPEG codec support
• Up to 100Mbps network camera recording
• Plug & play by 8 PoE ports
• Max. 2 HDDs supported (up to 12TB)
• HDMI / VGA local monitor
• Dynamic Event support
• Bookmark management
• P2P service (QR code connect) support

Datasheets

• HAN-XRN-820S Datasheet.pdf

• Inputs: up to 8ch
• Resolution: 32MP - CIF
• Protocols: SUNAPI, ONVIF
• Local display: FHD: HDMI & VGA dual monitor, UHD: HDMI single monitor
• Compression: H.265, H.264, MJPEG
• Recording bandwidth: max. 100 Mbps
• Supported HDD: 2 HDDs, up to 12TB
• Power input: 100 - 240V AC
• Power consumption: max. 160W
• PoE budget: 100W
• Colour/material: black, metal
• Dimensions: 370mm x 50.7mm x 324.3mm
• Weight: 2.7kg
