*SpOrd* Hanwha Wisenet 64ch NVR, H.265, 520Mbps, Dual PSU, No HDD, (16 SATA 160TB max)

HAN-XRN-6420DB4
AVAILABLE TO ORDER
*SpOrd* Hanwha Wisenet 64ch NVR, H.265, 520Mbps, Dual PSU, No HDD, (16 SATA 160TB max)

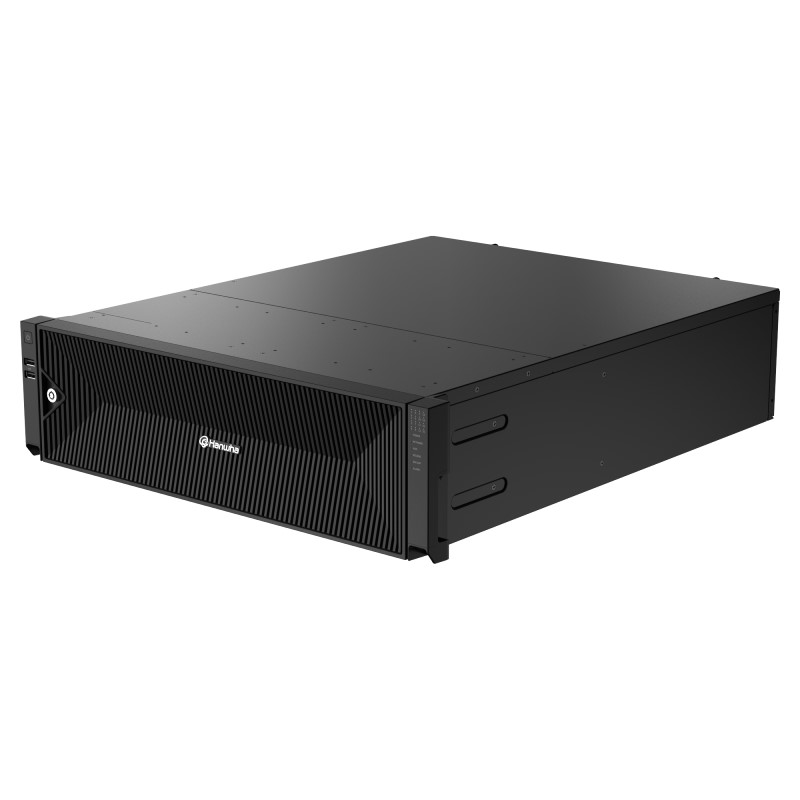

The Hanwha HAN-XRN-6420DB4 is a 64 channel NVR with the ability to record up to 32-megapixels. It can produce dual HDMI video output at a resolution of up to 3840 x 2160 and 1920 x 1080 and a recording bandwidth of up to 520Mbps. HAN-XRN-6420DB4 offers dual SMPS. Supporting compression of H.265, this NVR can also sufficiently reduce storage space.

  • Dual SMPS/PSU
  • Up to 64ch, 32MP camera supported
  • H.265, H.264, MJPEG codec support
  • Up to 520Mbps network camera recording
  • Max. 16 HDDs supported (up to 160TB)
  • 2 x HDMI local monitor
  • Dynamic layout
  • Bookmark management
  • Built-in support for Web Management (up to 100)
  • P2P service (QR code connect) support
  • NDAA compliant and TPM integrated

  • Inputs: up to 64ch
  • Resolution: 32MP - CIF
  • Protocols: SUNAPI, ONVIF
  • Local display: HDMI 1: 3840 x 2160, HDMI 2: 1920 x 1080
  • Compression: H.265, H.264, MJPEG
  • Recording bandwidth: max. 520 Mbps
  • Supported HDD: 16 HDDs, up to160TB
  • Power input: 100 - 240V AC (dual SMPS)
  • Power consumption: max. 265W
  • Colour/material: black, metal
  • Dimensions: 440mm x 132mm x 571.1mm
  • Weight: 15.1kg
