*SpOrd* Hanwha 16ch NVR, AI Search, 140Mbps, HDMI/VGA, No HDD (8 SATA 80TB max)
HAN-XRN-1620B2
AVAILABLE TO ORDER
*SpOrd* Hanwha 16ch NVR, AI Search, 140Mbps, HDMI/VGA, No HDD (8 SATA 80TB max)

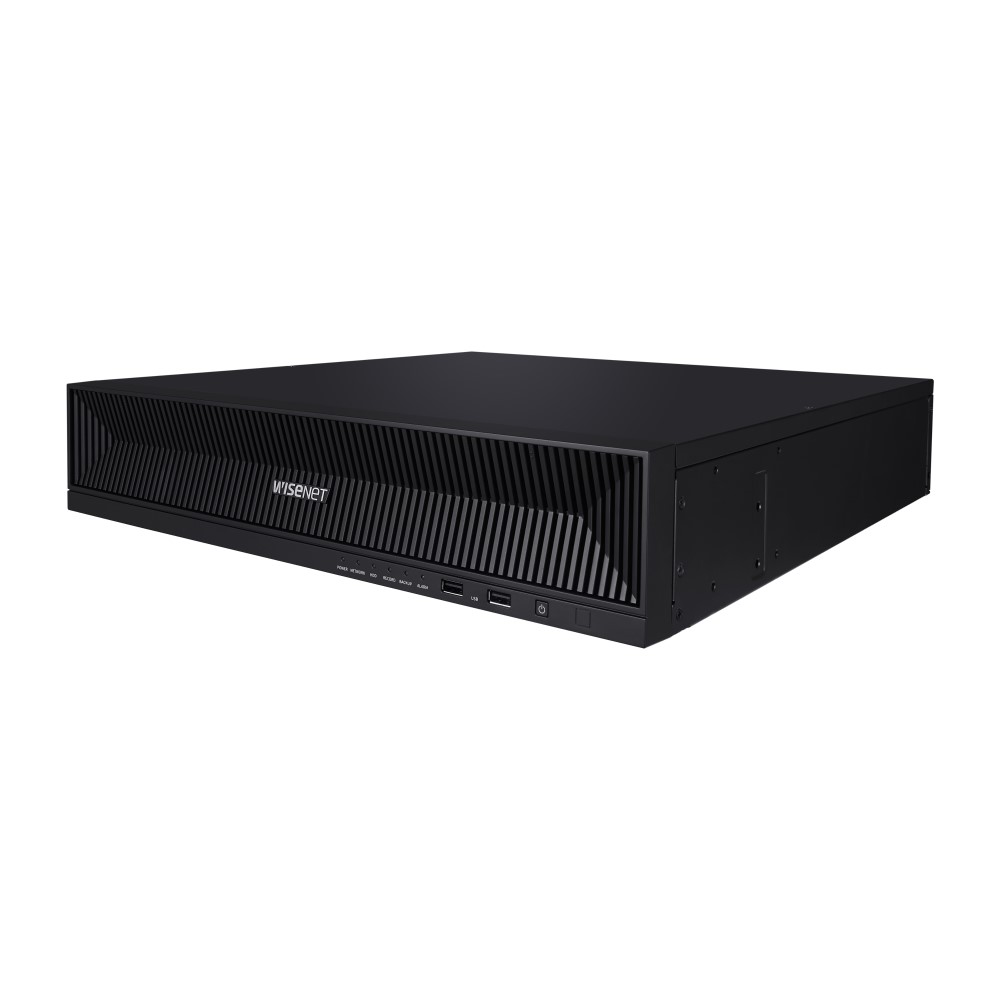

The Hanwha HAN-XRN-1620B2 is a 16 channel NVR with the ability to record up to 32-megapixels. It can produce a HDMI video output at a resolution of up to 3840 x 2160 and a recording bandwidth of up to 140Mbps. Supporting compression of H.265, this NVR can also sufficiently reduce storage space and costs by up to 50 percent, making it a cost-effective solution for a variety of security scenarios.
- Up to 16ch, 32MP camera supported
- H.265, H.264, MJPEG codec support
- Up to 140Mbps network camera recording
- Max. 8 HDDs supported (up to 80TB)
- HDMI / VGA local monitor
- Dynamic Event support
- Bookmark management
- P2P service (QR code connect) support
- Inputs: up to 16ch
- Resolution: 32MP - CIF
- Protocols: SUNAPI, ONVIF
- Local display: FHD: HDMI & VGA dual monitor, UHD: HDMI single monitor
- Compression: H.265, H.264, MJPEG
- Recording bandwidth: max. 140 Mbps
- Supported HDD: 8 HDDs, up to 80TB
- Power input: 100 - 240V AC
- Power consumption: max. 130W
- Colour/material: black, metal
- Dimensions: 440mm x 89.8mm x 428.4mm
- Weight: 5.71kg
Datasheets
No description available for this product
- Inputs: up to 16ch
- Resolution: 32MP - CIF
- Protocols: SUNAPI, ONVIF
- Local display: FHD: HDMI & VGA dual monitor, UHD: HDMI single monitor
- Compression: H.265, H.264, MJPEG
- Recording bandwidth: max. 140 Mbps
- Supported HDD: 8 HDDs, up to 80TB
- Power input: 100 - 240V AC
- Power consumption: max. 130W
- Colour/material: black, metal
- Dimensions: 440mm x 89.8mm x 428.4mm
- Weight: 5.71kg
