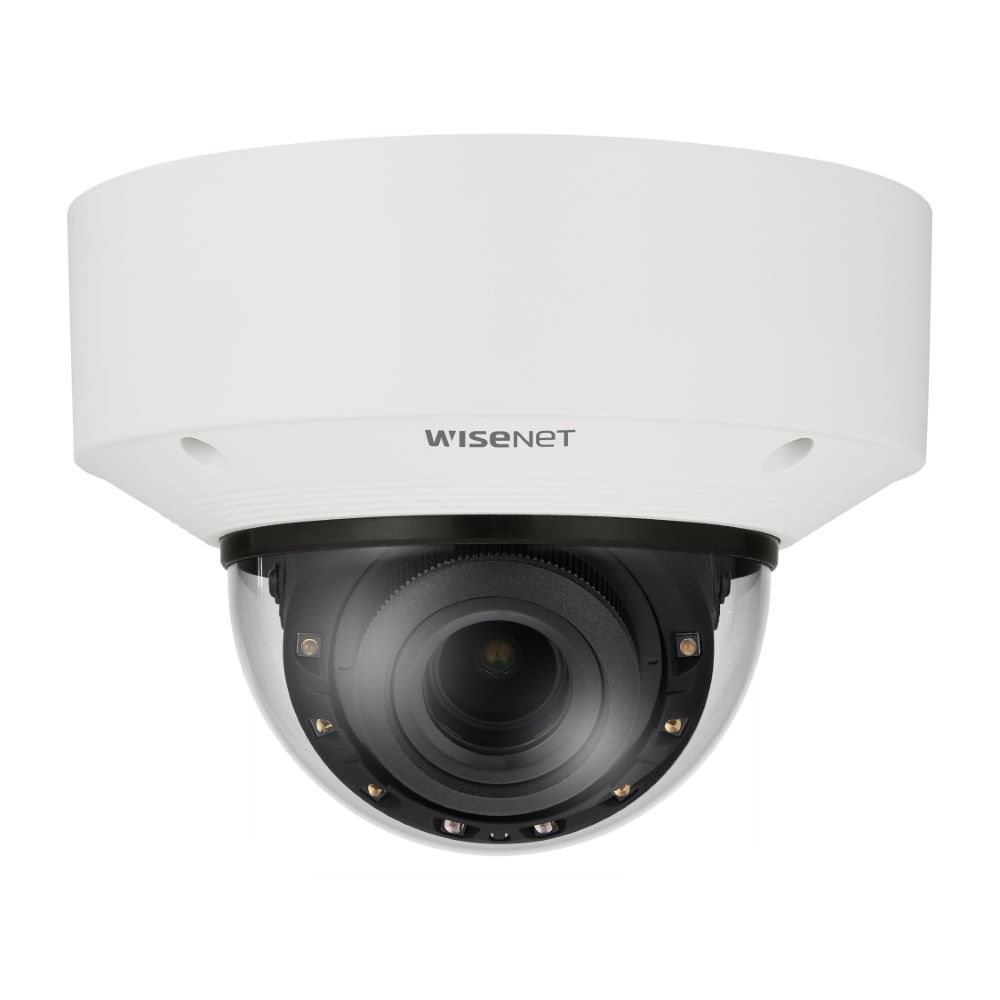

Hanwha Wisenet 6MP Outdoor Vandal Dome Camera, 30fps, 40m IR, IK10, 4.4-9.3mm

Hanwha Techwin's HAN-XNV-C8083R is an X-Core Outdoor Dome Camera that has on board analytics and AI assisted video processing, WiseNR II & WiseStream III. These AI-based analytics provide highly accurate detection of person, face or vehicle, people counting, queue management and heat mapping detailing in store patterns of human behaviour. Also combining virtual line crossing, loitering detection, camera tampering and motion detection, these powerful analytics make the X-Core the perfect 'smart' camera for most installations. Edge based analytics improve operator efficiency for both real-time event notification and post-event search.

• 6MP resolution
• AI-based analytics for object detection which can obtain highly accurate people counts, queue management data and heat maps showing detailed patterns of behaviour for businesses
• AI-based image enhancements, bandwidth reduction with WiseStream III and object detection including person, face and vehicle
• WiseNR II and WiseStream III (based on AI engines)
• Extreme WDR and WiseIR
• Business intelligence
• Intelligent Video Analytic (IVA) - virtual line/area, enter/exit, loitering, direction
• Analytics events: defocus, motion, tampering, audio and shock detection, sound classification and appear/disappear
• Next level cybersecurity: Cybersecurity Assurance Program (UL CAP)

Datasheets

• HAN-XNV-C8083R Datasheet.pdf

• 1/1.8" CMOS progressive scan
• 4.4 - 9.3mm (2.1x) motorised varifocal
• IR viewable length: WiseIR 40m
• H.265/H.264/MJPEG
• Day and Night (ICR), extremeWDR (120dB)
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC memory slot (max. 512GB)
• PoE (IEEE802.3af, Class3) / 12VDC
• White, aluminium
• Hard coated bubble dome
• Dimensions: 160mm x 118mm
• Weight: 1450g
