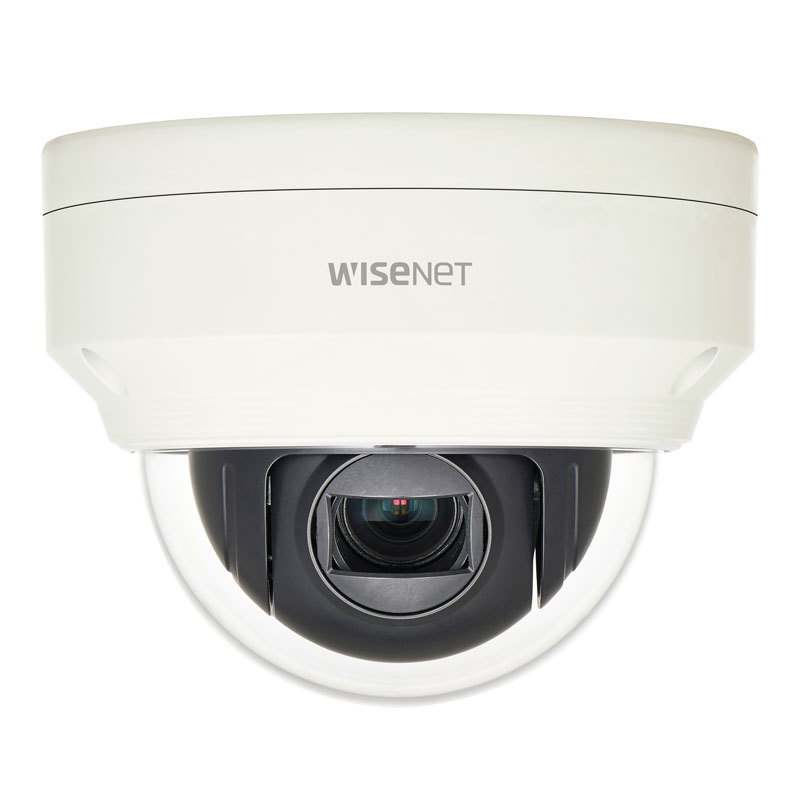

With cutting-edge WDR technology, the Hanwha HAN-XNP-6040H conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNP-6040H reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNP-6040H is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

• Max. 2MP (1920 x 1080) resolution
• 2.8 - 12mm lens
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day and night (ICR), WDR (150dB), DIS
• Loitering, directional detection, fog detection, audio detection
• Digital auto tracking, sound classification, tampering
• Motion detection
• SD / SDHC / SDXC memory slot
• WiseStream II support
• LDC support (lens distortion correction)
• IP66 and IK10 support

Datasheets

• HAN-XNP-6040H Datasheet.pdf

User Manuals

• HAN-XNP-6040H User Manual.pdf

• 1/2.8" 2.16M CMOS progressive scan
• 2.8 - 12mm fixed lens, F1.4, 4.3x optical zoom
• Colour: 0.015 lux (F1.4, 1/30sec)
• B/W: 0.0015 lux (IR LED on)
• Angular field of view: 119.5 - 27.9 degrees horizontal, 62.8 - 15.7 degrees vertical and 15.7 - 142.1 degrees diagonal
• RJ-45 10/100base-T ethernet
• SD / SDHC / SDXC memory slot (max. 512GB)
• 12V DC, PoE (IEEE802.3af)
• Ivory, aluminium
• Dimensions: 136.1 x 106.1mm
• Weight: 0.78kg
