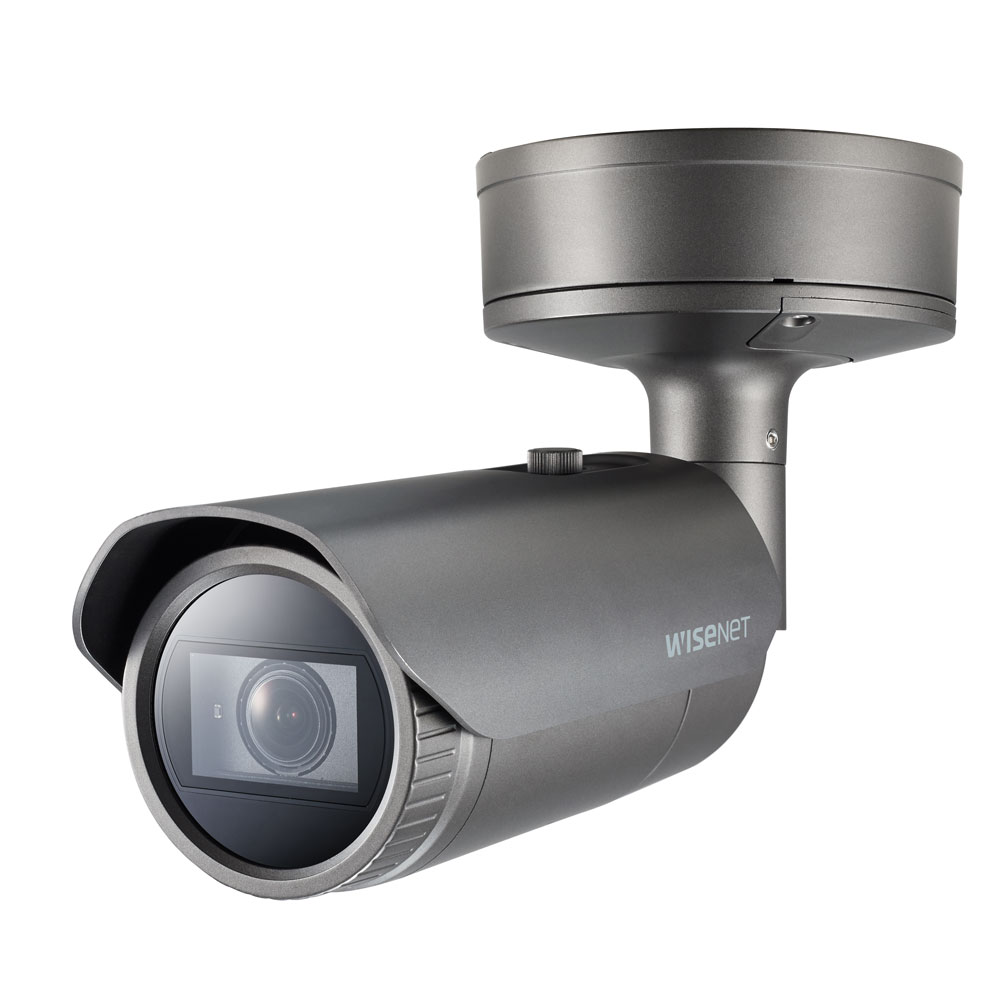

Hanwha's HAN-XNO-9082R offers up to 4K high-resolution video providing clear and vivid images suitable for forensic search applications. In addition to high-resolution, various functions such as extreme WDR, noise reduction technology and lens distortion correction were installed to improve overall video quality.

The Wisenet7 SoC includes improved extreme WDR technology that reduces noise which occurs during the WDR imaging process. This provides clear and well contrasted images even in extreme backlighting conditions. Advanced noise reduction technology of Wisenet7 uses different filters for moving and still areas within a camera's field of view. This minimises motion blur and improves edge and colour definition of objects, making them easier to identify when viewing live video and during forensic review. This camera's lens distortion correction technology corrects video distortion created using wide-angle lenses, delivering video that more closely resembles what is seen through the human eye.

• 4K resolution
• 2.8-8.4mm(3x) motorised varifocal
• 0.05Lux at F1.2 (colour), 0Lux(B/W)
• Max. 30fps at 6MP (H.265/H.264)
• 40m IR
• Day and night (ICR), extreme WDR
• DIS with built-in gyro sensor
• Video analytics (defocus, directional detection, audio detection, shock detection, face/upper body detection)
• Dual SD slots (max. 512GB)
• Modular structure, PoE support
• IP66/IP67, IK10, NEMA4X

Datasheets

• HAN-XNO-9082R Datasheet.pdf

User Manuals

• HAN-XNx-x0x2 User Manual.pdf

• 1/2.8" CMOS progressive scan
• Colour: 0.05 lux (F1.2, 1/30sec)
• B/W: 0 lux (F1.2, 1/30sec)
• Micro SD/SDHC/SDXC 2slot 512GB(256Gx2)
• PoE(IEEE802.3af), 12VDC, 24VAC
• Dark grey, aluminium
• Dimensions: 91 x 368.6mm
• Weight: 2.2kg
