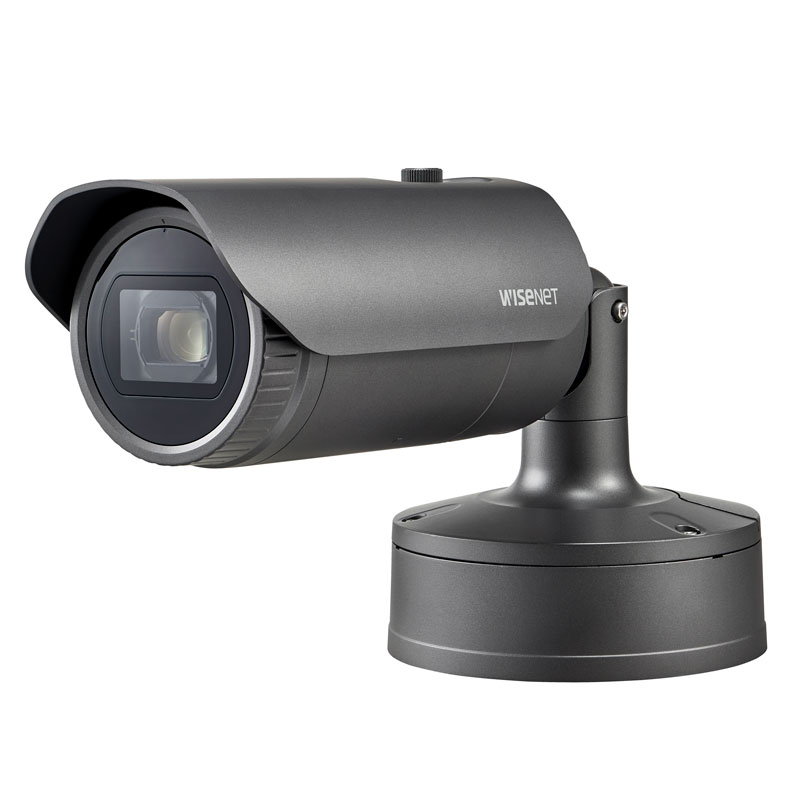

With cutting-edge WDR technology, the Hanwha HAN-XNO-6120R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNO-6120R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNO-6120R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

• Max. 2MP (1920 x 1080) resolution
• Max. 60fps at all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day & night (ICR), WDR (150dB), defog
• Loitering, directional detection, fog detection, audio detection
• Sound classification, tampering
• Motion detection, handover
• SD / SDHC / SDXC memory slot (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 70m
• IP67/IP66, NEMA 4X, IK10
• PoE/24V AC, 12V DC, bi-directional audio support

Datasheets

• HAN-XNO-6120R Datasheet.pdf

User Manuals

• HAN-XNx-6120R User Manual.pdf

• 1/2.8" 2M CMOS progressive scan
• 5.2 - 62.4mm DC auto iris lens
• Colour: 0.03 lux (F1.6, 1/30sec)
• B/W: 0 lux (IR LED on)
• RJ-45 10/100base-T ethernet
• SD / SDHC / SDXC memory slot (max. 512GB)
• 24V AC, 12V DC, PoE (IEEE802.3af)
• Dark grey, aluminium
• Dimensions: 91 x 368.6mm
• Weight: 2.18kg
