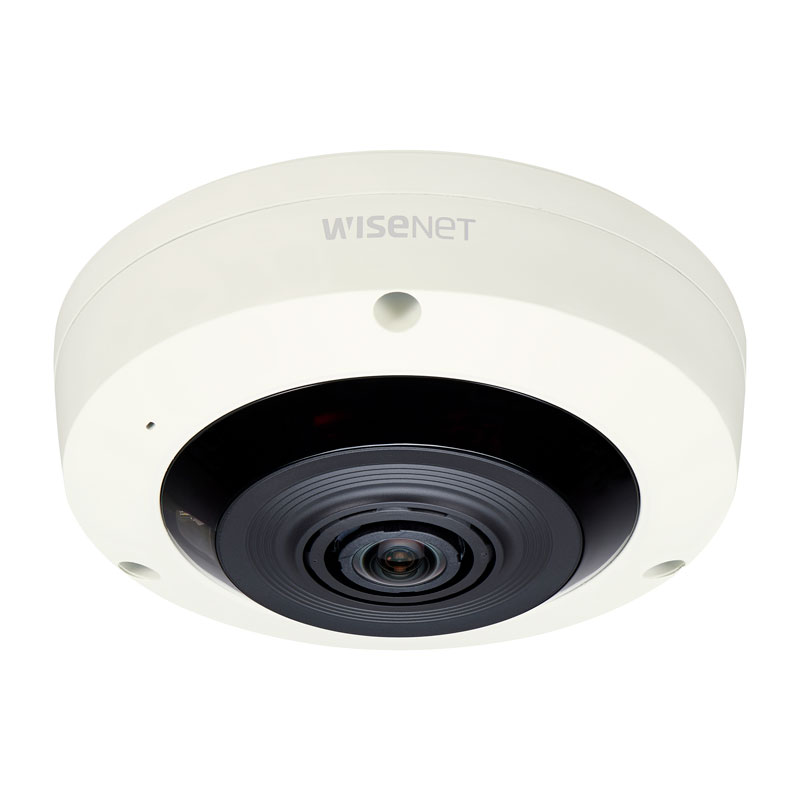

With cutting-edge WDR technology, the Hanwha HAN-XNF-8010R conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNF-8010R reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNF-8010R is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

• Max. 2048 x 2048 resolution
• H.265, H.264, MJPEG codec supported
• On board dewarping, digital PTZ (8x), bi-directional audio
• Tampering, loitering, directional detection, audio detection, sound classification, heatmap, people counting, queue management
• Motion detection, handover
• SD / SDHC / SDXC memory slot (max. 512GB), 12V DC / PoE
• IR viewable length 15m

Datasheets

• HAN-XNF-8010Rx Datasheet.pdf

User Manuals

• HAN-XNF-8010Rx User Manual.pdf

• 1/1.8" 6M CMOS progressive scan
• 1.6mm fixed lens F1.6
• Colour : 0.1 Lux (F1.6), B/W : 0 Lux (IR LED On)
• Angular field of view: 192 degrees horizontal, vertical and diagonal
• RJ-45 10/100base-T ethernet
• Ivory, aluminium
• Dimensions: 146 x 54.8mm
• Weight: 730g
