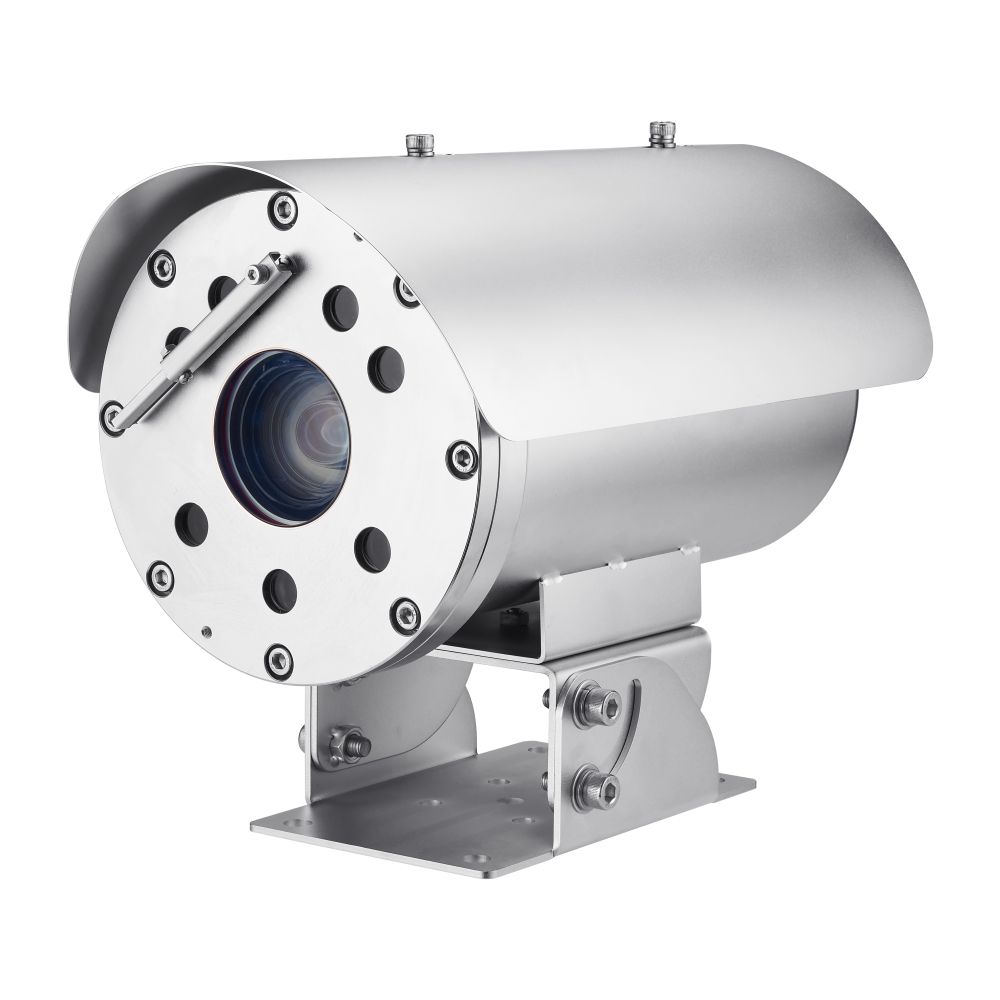

*SpOrd* Hanwha Wisenet 2MP Explosion Proof Bullet Camera, 70m IR, 4.44-142.6mm

Hanwha's HAN-TNO-6322ER is an explosion proof bullet camera that utilises a 316L stainless steel housing for maximum corrosion and explosion resistance with a vandal rating of IK10, a water/dust ingress rating of IP67 and a built-in wiper.

Certified under globally recognised ATEX and IECEX schemes, Hanwha's explosion proof camera range is considered safe to be operated within hazardous environments, including within areas with combustible sources. Typical applications are for potentially hazardous or explosion risk areas, such as gas/oil processing and storage plants, chemical plants, industrial sites, deep mines, or marine applications.

• 2MP resolution
• ATEX and IECEX certified
• 316L stainless housing
• IP67 and IK10 rated
• IR viewable length of up to 70m
• Day and night (auto ICR), WDR (120dB)
• Built in wipers

Datasheets

• HAN-TNO-6322ER Datasheet.pdf

User Manuals

• HAN-TNO-6322ER User Manual.pdf

• 1/2.8" CMOS progressive scan
• 1920 x 1080 max. resolution
• 4.44 - 142.6mm (32x) zoom
• Colour: 0.05 Lux (1/30sec, F1.6)
• B/W: 0.005 Lux (1/30sec, F1.6), 0 Lux (IR LED on)
• DC auto iris
• RJ-45 10/100 base-T ethernet
• Max. power 45W (24V AC)
