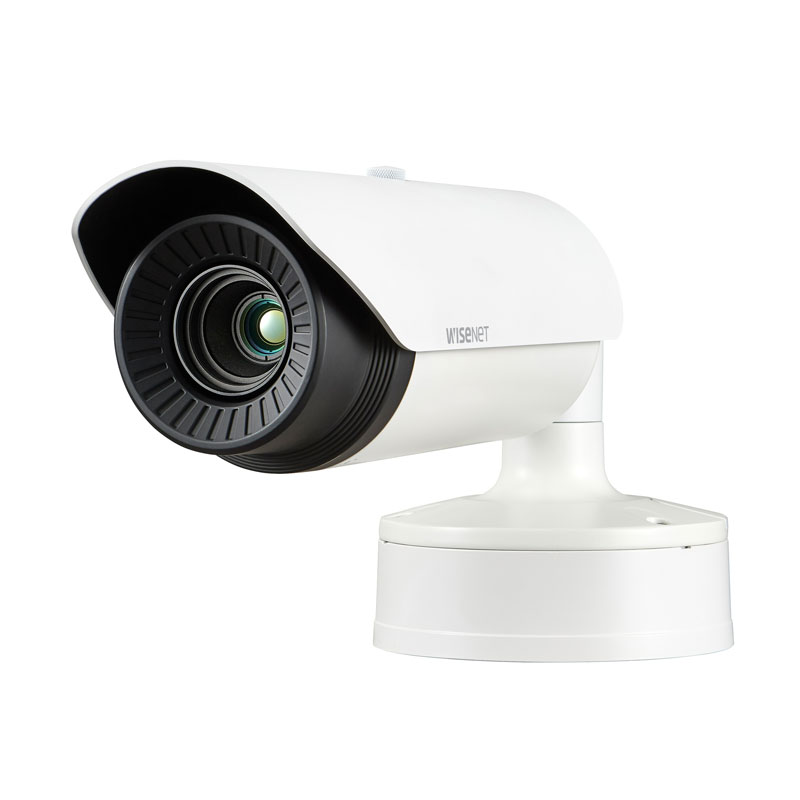

*SpOrd* Hanwha Wisenet VGA Thermal Radiometric Bullet Camera, H.265, IK10, PoE, 13mm

The Hanwha HAN-TNO-4030TR provides high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. This camera can be a very powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat, making them applicable in manufacturing and industrial facilities, air and seaports and mining areas. This camera utilises reliable video and audio analytics for efficient monitoring and improves the overall security system's efficiency by automatically notifying users when abnormal behaviour is detected.

• Max. 640 x 480 resolution support
• Built-in 13/19mm fixed lens
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Temperature detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC / IP66, NEMA4X, IK10

Datasheets

• HAN-TNO-40xxTR Datasheet.pdf

User Manuals

• HAN-TNO-40xxTR User Manual.pdf

• 13mm fixed lens, F1.0
• RJ-45 10/100base-T ethernet
• SD / SDHC / SDXC memory slot (256GB)
• 12V DC, 24V AC, PoE (IEEE802.3af, Class3)
• Operating temperature: -40 to 60 degrees celsius
• Colour and material: white, aluminium
• Dimensions: 101.97 x 401.8mm
