Hanwha Wisenet Encoder 4ch, 12fps at 5MP, HDMI, BNC, PoE, 12VDC

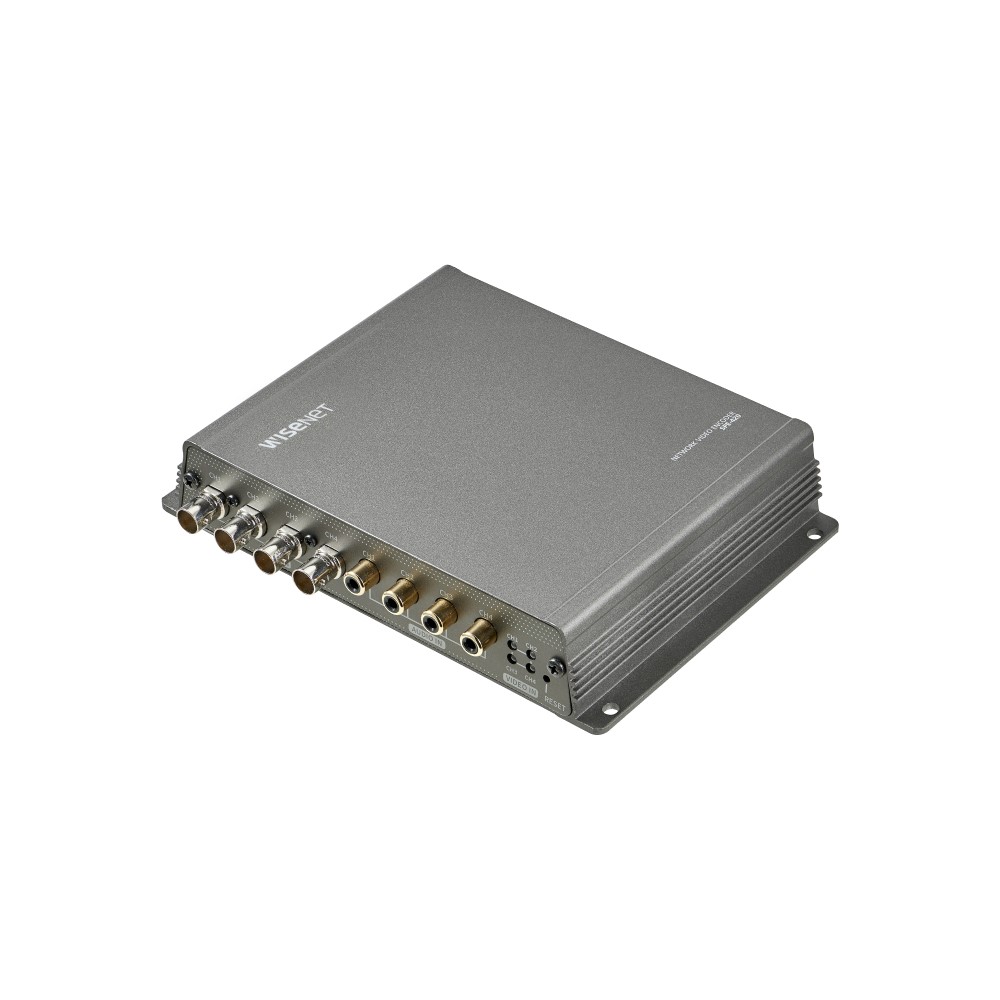

The Hanwha HAN-SPE-420 is a 4-channel encoder that converts analog video signals from CVBS, AHD, CVI, or TVI cameras to digital IP streams. It supports up to 5MP resolution and 12fps at 5MP or 30fps at lower resolutions. It uses H.265, H.264, or MJPEG compression formats and supports multiple streaming profiles per channel. It has a HDMI output for local monitoring, an RS-485 interface for remote control, and 16 alarm inputs and 4 alarm outputs. It also supports motion detection, privacy masking, de-interlacing, and coaxial control. The HAN-SPE-420 is compatible with ONVIF and Hanwha Vision software and recorders. It is a cost-effective solution for upgrading existing analog systems to IP networks without replacing the cameras.

For more information visit HanwhaVision.com

• Max. 5MP resolution
• Max. 12fps at 5MP
• H.265, H.264, MJPEG codec supported
• Multiple streaming (up to 2 profiles per channel)
• 4 input/2 output
• Motion detection, alarm input, tampering
• CVBS, AHD/CVI/TVI

Datasheets

• HAN-SPE-420 Datasheet.pdf

• DC12V, PoE(IEEE 802.3af)
• IPv4, IPv6
• RJ-45 10/100 base-T ethernet
• Max power consumption: 16W (12V, 1.33A)
• Dark grey, metal
• Dimensions: 178 x 34 x 127 mm
• Weight: 520g
