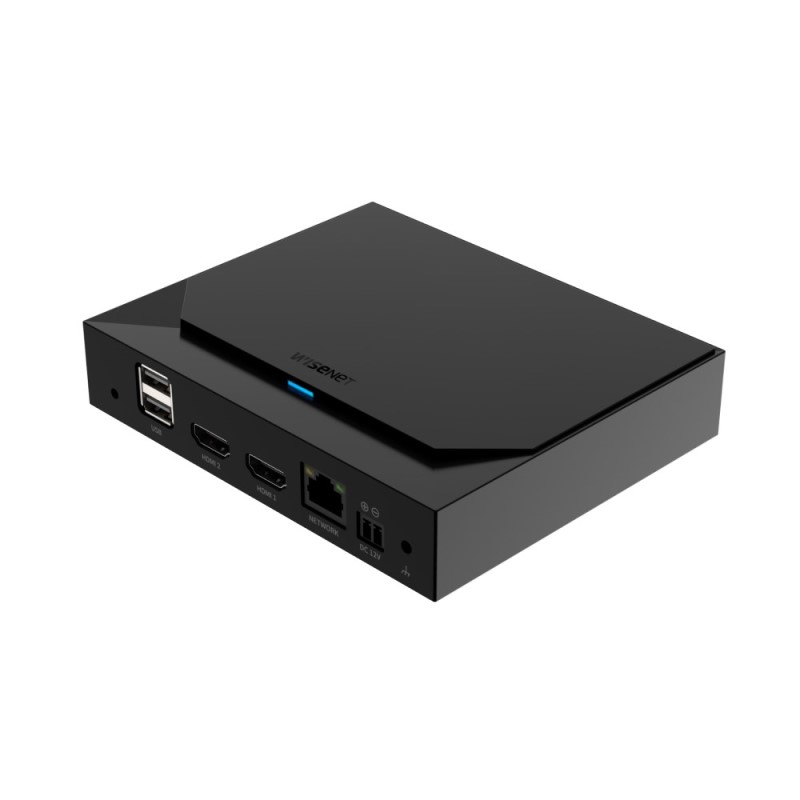

Hanwha Wisenet Decoder, 64ch, 60fps at 8MP, HDMI, PoE, 12VDC

The Hanwha HAN-SPD-152 is 64 channel network video decoder which can receive video from up to 64 analogue cameras and convert it into digital formats such as H.265, H.264 or MJPEG. It features HDMI, VGA and CVBS display ports and supports ONVIF, SUNAPI and RTSP cameras.

• Video decoding up to 64 cameras on HDMI and VGA
• Clone and expand mode support (HDMI UHD, HDMI FHD)
• Max 8MP at 60fps, 2MP at 360fps decoding
• H.265, H.264, MJPEG codec support
• Monitor, back and pole mount installation
• Supports ONVIF, SUNAPI, RTSP cameras
• PoE and DC 12V Dual power
• Up to 20 layouts and sequence
• Management using local UI
• Configuration export / import

Datasheets

• HAN-SPD-152 Datasheet.pdf

• Embedded linux system
• 150Mbps network performance
• 64ch on HDMI and VGA
• 60fps at 8MP, 360fps at 12MP
• Dual HDMI
• PoE (IEEE802.3af)
• Max. 11W (12V DC), 12.95W (PoE)
• Black, metal and plastic
• Dimensions (W x H x D): 140 x 29.5 x 115.4mm
• Weight: 260kg
