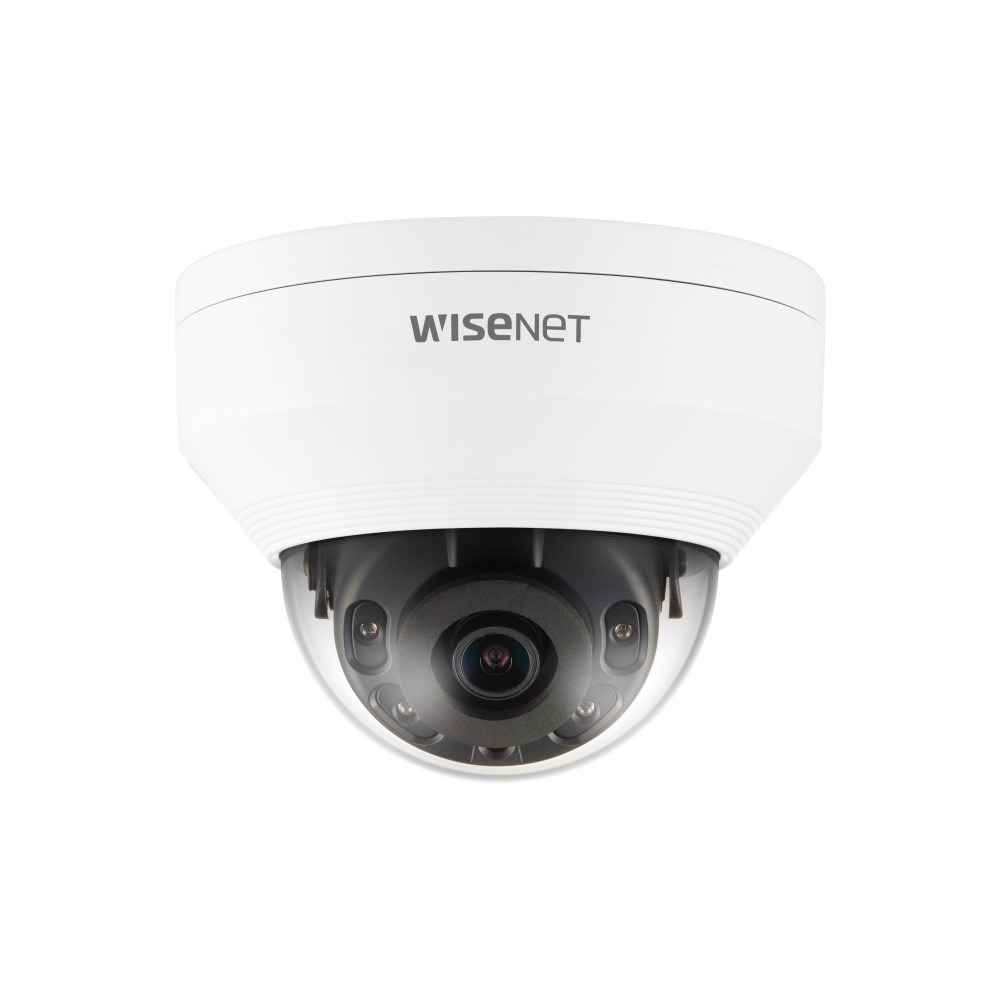

Hanwha Wisenet 4MP Outdoor Dome Camera, H.265, 30fps, 20m IR, IP66, 2.8mm

The advanced compression technology of WiseStream that is incorporated into the HAN-QNV-7012R can reduce bandwidth by up to 50% and when combined with H.265, the bandwidth efficiency can be improved by up to 75% compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The HAN-QNV-7012R offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation.

• Maximum 4MP resolution
• 2.8mm fixed focal
• Maximum 30fps@4MP all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• Micro SD/SDHC/SDXC memory slot (128GB)
• IR viewable length 20m (65.62ft)
• IP66, IK10,
• PoE, 12VDC
• Hallway view, WiseStream support

Datasheets

• HAN-QNV-7012R Datasheet.pdf

• 1/3" CMOS
• 2.8mm fixed lens, F2.0
• Colour: 015 lux
• B/W: 0 lux (IR LED on)
• Pan range: 0 - 350 degrees
• Tilt range: 0 - 67 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC (max. 128GB)
• IP66
• IK10
• PoE (IEEE802.3af, Class3) / 12V DC
