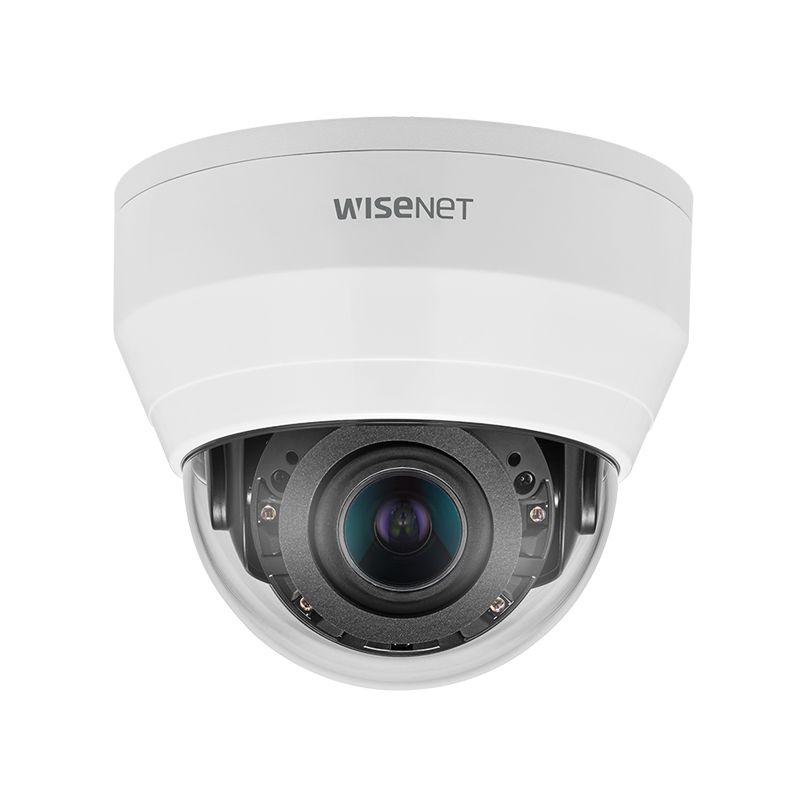

Hanwha's 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the Hanwha HAN-QND-8080R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. The Hanwha HAN-QND-8080R offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.

• Max. 5MP resolution
• 3.2 - 10mm motorised varifocal lens
• Max. 30fps at 5MP (H.265/H.264)
• H.265, H.264, MJPEG codec supported, multiple streaming
• Day and night, WDR (120dB)
• Motion detection, tampering, defocus detection
• Hallway view, WiseStream II support
• 20m IR

Datasheets

• HAN-QND-8080R Datasheet.pdf

• 1/2.8" 5MP CMOS progressive scan
• 3.2 - 10mm motorised varifocal lens, F1.6 - F2.9
• Colour: 0.15 lux
• B/W: 0 lux (IR LED on)
• Pan range: 0 - 350 degrees
• Tilt range: 0 - 67 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC (max. 128GB)
• PoE (IEEE802.3af, Class3)
