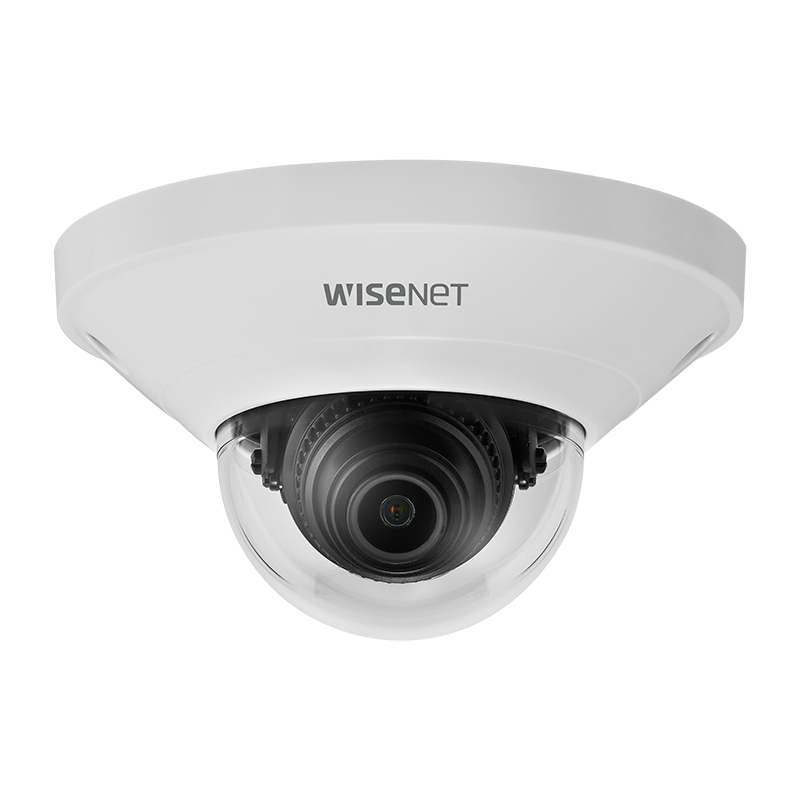

Hanwha's 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the Hanwha HAN-QND-8011 can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The Hanwha HAN-QND-8011 offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.

• Max. 5MP resolution
• 2.8mm fixed lens
• 120dB WDR
• Max. 30fps at 5MP (H.265/H.264)
• H.265, H.264, MJPEG codec supported, multiple streaming
• Motion detection, tampering, defocus detection
• Hallway view, WiseStream II support
• LDC support (Lens distortion correction)
• HDMI output

Datasheets

• HAN-QND-80x1 Datasheet.pdf

• 1/2.8" 2.19M CMOS progressive scan
• 2.8mm fixed lens, F2.0
• Colour: 0.15 lux
• Pan range: 0 - 350 degrees
• Tilt range: 0 - 69 degrees
• Rotate range: 0 - 355 degrees
• RJ-45 10/100base-T ethernet
• Micro SD / SDHC / SDXC (max. 128GB), PoE
• IK08
• PoE (IEEE802.3af, Class3)
• Video output: Micro HDMI (type D) - 1080p at 30/25fps (60/50Hz)
