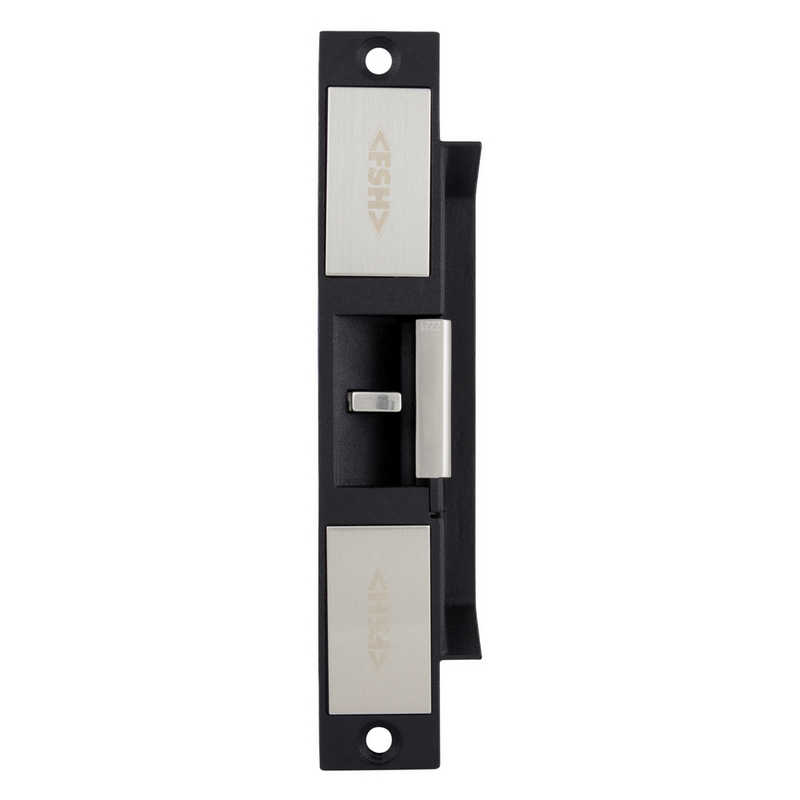

FSH FES90M High Security Electric Strike, 1300kg Hold Force, 35kg Pre-Load 12-30V DC

FSH FES90M High Security Electric Strike, 1300kg Hold Force, 35kg Pre-Load 12-30V DC



Code: FSH-FES90M-P
Brand: FSH
Product Details
FSH FES90M High Security Electric Strike, 1300kg Hold Force, 35kg Pre-Load 12-30V DC


The FSH-FES90M-P motorised high security electric strike is a revolutionary electric locking solution. Its high pre-load/side-load tolerance and minimal energy consumption in sleep mode, makes this an economic security solution. The strike accepts voltages from 10 to 30V DC, is pre-drilled for extension lips and has a unique Power To Lock (PTL) / Power To Open (PTO) field interchangeable system. The strike also consumes current less than 300mA @ 12VDC at full 35kg pre-load when the solenoid is fully energised during locking and unlocking function.

While in the resting and non-energised state of locked or unlocked (Sleep Mode), the electric strike consumes less than 15mA @ 12VDC. The FSH-FES90M-P provides two forms of monitoring, Lock Status Sensor (LSS) & Door Status Sensor (DSS) FES90M-P comes with a 10mm strike lip as standard.

  • Mortice Mount
  • Power-To-Lock/Power-To-Unlock field interchangeable
  • 35kg of Pre-Load capability
  • Holding strength: Up to 1300kg
  • Voltage input: 10-30V DC
  • Max current draw: 300mA @ 12VDC at full 35kg pre-load
  • Min current draw (Sleep-Mode): 15mA @ 12V DC
  • Monitoring: LSS (Lock Status/engaged Sensor) & DSS (Door Status/position Sensor)
  • Operational temperature range: -20 to +60 degrees Celsius
