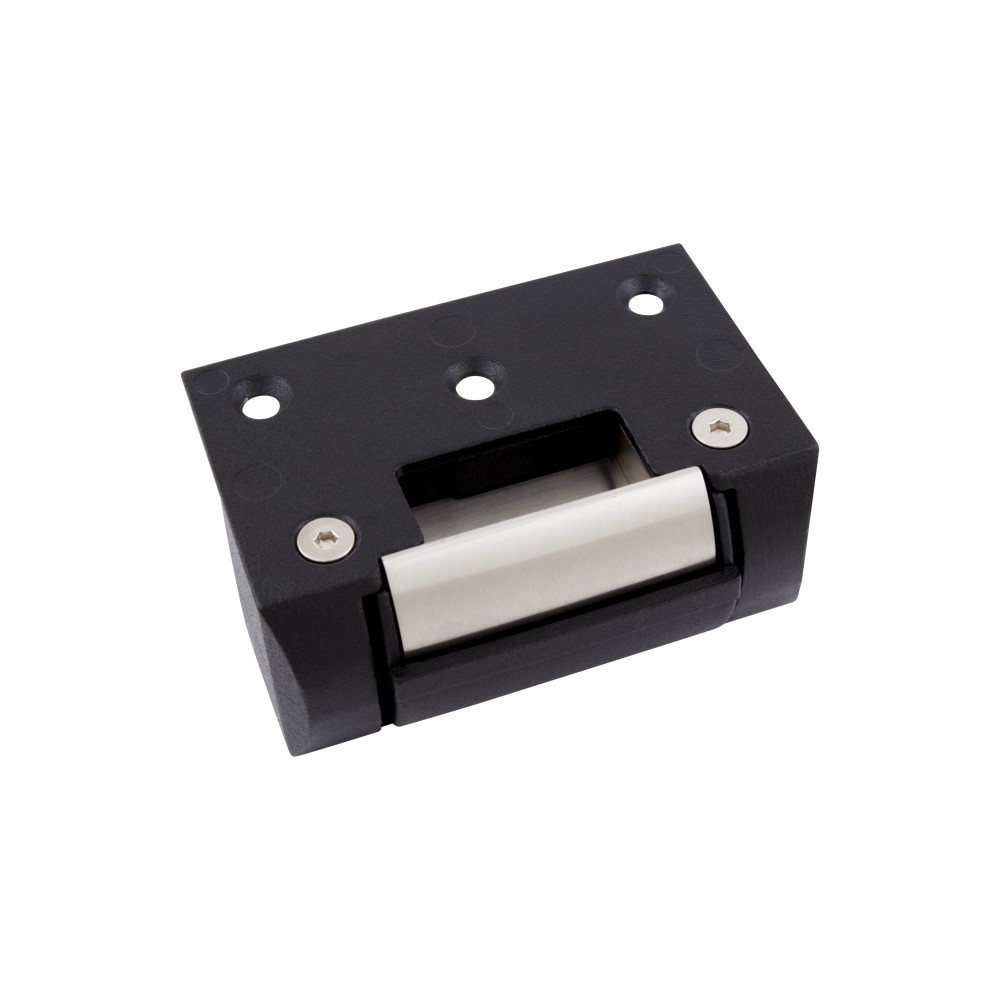

FSH FES15 Rim Mount Strike, Monitored, up to 1200kg, 12/24V DC

The FSH-FES15M is part of the FES15 series of electric strikes are designed for light commercial and residential applications. With a small "RIM" mount footprint, the strikes accept either 12 or 24VDC input and are easily Power To Lock (PTL) / Power To Open (PTO) field interchangeable. The strike is pre-drilled with threaded cavities to cater for extension lips, have a holding strength of up to 1000kg and come in a monitored and non-monitored model.

• Stainless steel faceplate and keeper
• Low power consumption
• Surface rim mount installation
• 12 or 24VDC operation
• Monitored door sense

Datasheets

• FSH-FES15M Datasheet.pdf

• Holding strength: 1,200kg
• Power input: 12V or 24V DC
• Max current draw at 12V: 200mA
• Max current draw at 24V: 100mA
• Dimensions: 95mm (L) x 37mm (W) x 40mm (D)
