FSH FES15 Rim Mount Strike, Non-Monitored, up to 1200kg, 12/24V DC

FSH FES15 Rim Mount Strike, Non-Monitored, up to 1200kg, 12/24V DC



Code: FSH-FES15
Brand: FSH
Product Details

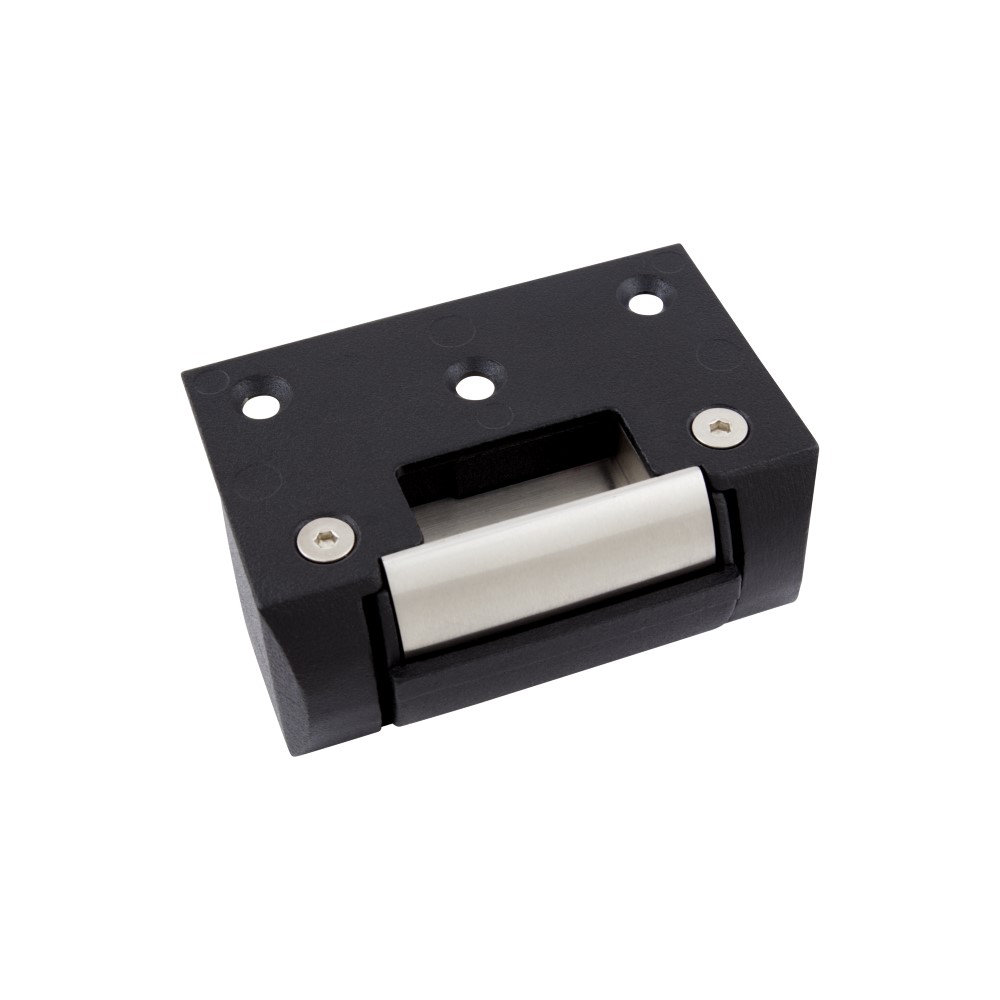

FSH FES15 Rim Mount Strike, Non-Monitored, up to 1200kg, 12/24V DC


The FSH-FES15 is part of the FES15 series of electric strikes are designed for light commercial and residential applications. With a small "RIM" mount footprint, the strikes accept either 12 or 24VDC input and are easily Power To Lock (PTL) / Power To Open (PTO) field interchangeable. The strike is pre-drilled with threaded cavities to cater for extension lips, have a holding strength of up to 1000kg and come in a monitored and non-monitored model.

  • Stainless steel faceplate and keeper
  • Low power consumption
  • Surface rim mount installation
  • 12 or 24VDC operation
  • Holding strength: 1,200kg
  • Power input: 12V or 24V DC
  • Max current draw at 12V: 200mA
  • Max current draw at 24V: 100mA
  • Dimensions: 95mm (L) x 37mm (W) x 40mm (D)
