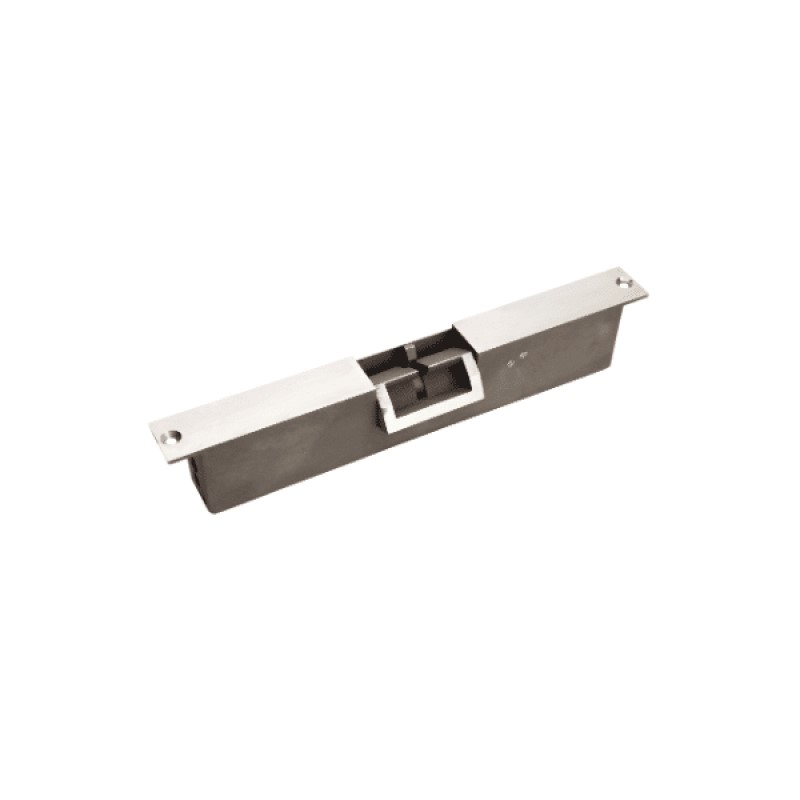

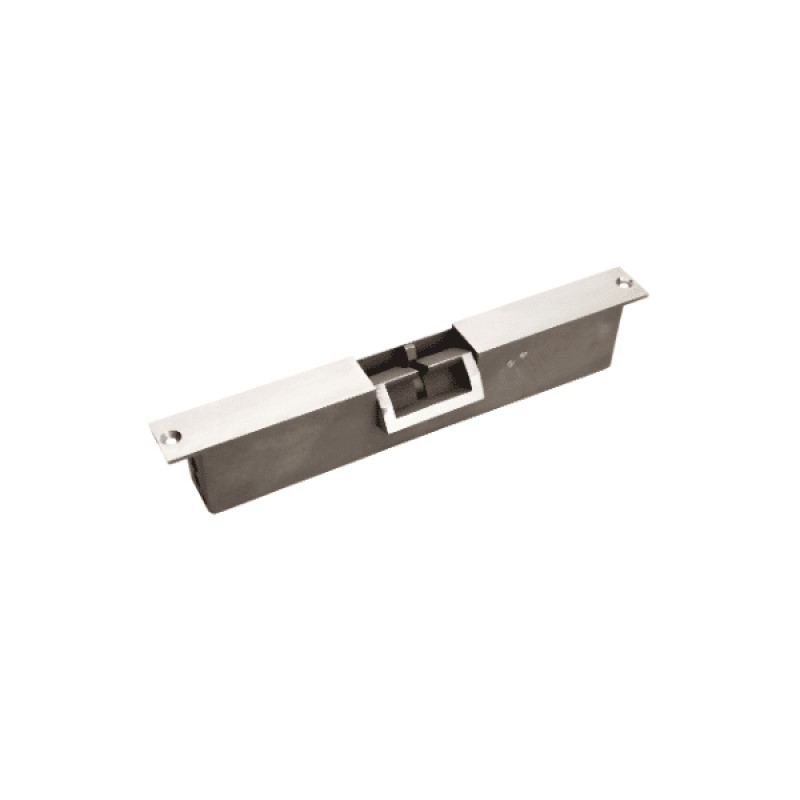

FSH FES110 High Security Deadlock Strike, Monitored, up to 500kg, PTL, 12-30V DC

The FSH-FES11030PTL deadlock electric door strike release mechanism has been designed to provide door access control while maximising security to a door assembly fitted with square bolt deadlocks. It monitors both door lock tongue and internal locking of the strike.

• Function: Power to lock
• Monitoring: Lock bolt & locking solenoid
• Voltage/current: 12VDC/900mA, 24VDC/450mA
• Holding strength: Up to 500kg
• Approvals: 2 hour fire rated & SCEC
• Dimensions: 306 x 32 x 58 mm
