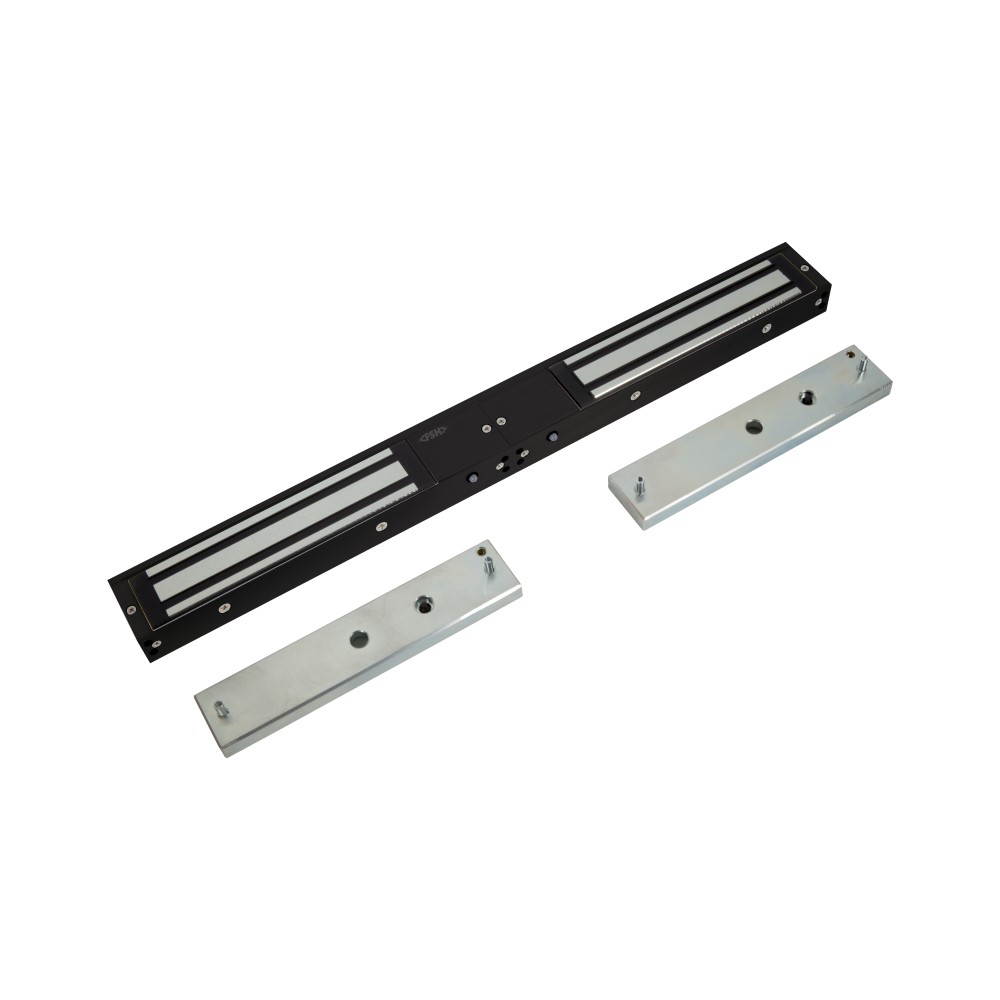

FSH FEM4300 Double Mag Lock, Monitored, 280kg, Black

The FSH-FEM4300DM-B is part of the FSH FEM4300 electromagnetic lock series and has a holding strength up to 280kg. Coming in different configurations such as single and double, monitored, and non-monitored and colours, including silver and black, make this range suitable for almost any installation application. The series also includes a trigger input and a red/green LED indicator to represent locked and unlocked status, as well as an output that follows the door position status (on monitored models only). Accessories such as adjustable L & Z brackets for different mounting positions and armature plates for glass doors, further extend the installation capabilities.

• Field selectable voltage input, 12 or 24 V
• Double door secure
• Door and lock status monitoring sensor
• Built-in varistor (MOV) surge protection
• Red/Green multi-colour LED for locked/unlocked status
• No residual magnetism
• Fire Rated up to 2-hours
• Black colour
• Anodised aluminium finish

• Holding Strength: 280kg
• Max current draw at 12V: 500mA
• Max current draw at 24V: 250mA
• Dimensions: 477mm (L) x 48mm (W) x 25mm (D)
