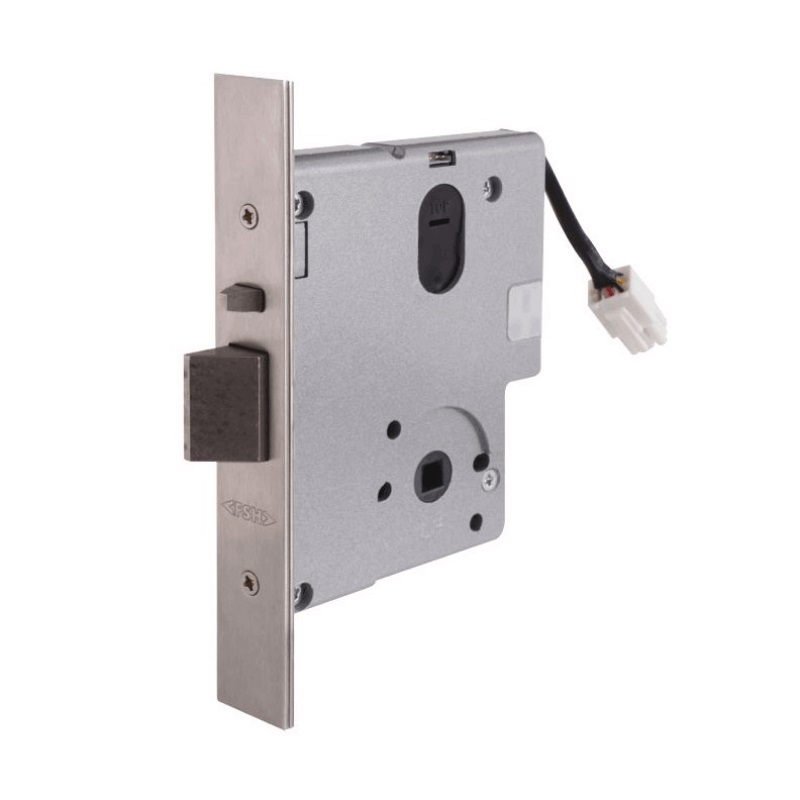

The FSH-FEL990 series is a multi-function electric mortice lock that is designed to provide single-sided locking, power to lock/power to open and left/right hand operation.

• Door position monitoring by reed switch
• Lock status by combination of:
• Locking bar status
• Dead latch bolt status
• Latch bolt status
• Power transfer option
• Dual key override monitoring
• Request to exit via hub or handle
• LED indication
• Multi-voltage - 12-24VDC/350mA momentary
• Reverse polarity protected
• 3m cable with industry standard 12 pin plug
• 60mm backset
• Fail safe/fail secure field selectable
• Satin chrome finish
