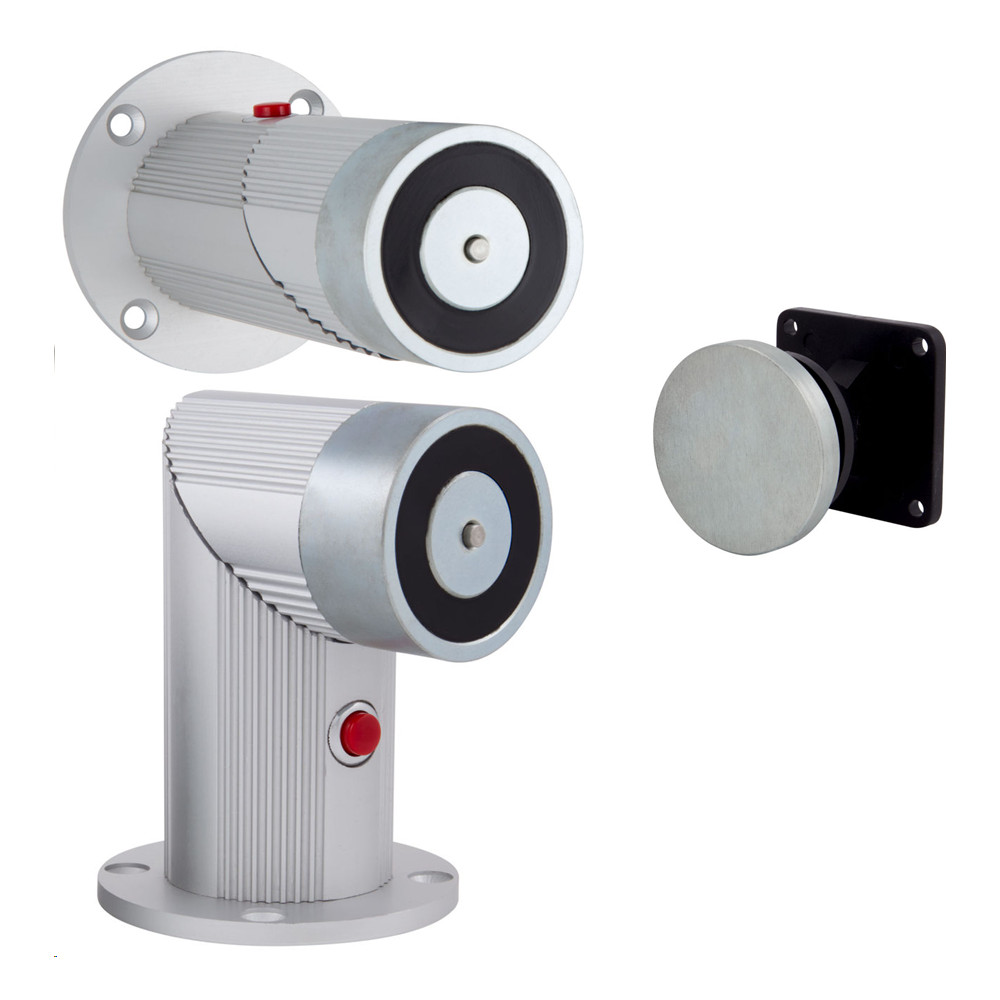

FSH FDH50 Electromagnetic Door Holder, Wall/Floor Mount 12/24V DC
The FSH-FDH50 is an electromagnetic door holder that is suitable for floor or wall mount applications. With low current consumption, the door holder has a holding force of up to 45kg.
The FSH-FDH50 accepts voltages of either 12 or 24VDC and is fire rated up to 4-hours to Australian Fire Test Standards when used with the supplied B110DH armature plate. The FSH-FDH50 is a compact, highly durable electromagnetic door holder suitable for most swing doors.
- Selectable voltage for 12V or 24V DC input (with jumper pins)
- Emergency Release / Test Button
- Simple unscrew, twist and re-screw application for floor or wall mount installation
- Durable and silent operation
- Compact Size for most types of swing doors
- Up to 4-hour fire rated in accordance with
- AS1905.1:2015 specifications (when used with the supplied B110DH armature plate)
- Voltage input: 12V or 24V DC
- Current draw: 100mA (12V DC) or 50mA (24V DC)
- Holding force: 45kg
- Mount: Wall or Floor (Floor out-of-the-box)
- Dimensions: 110mm high (when floor mounted), 140mm long (when wall mounted)
Datasheets
The FSH-FDH50 is an electromagnetic door holder that is suitable for floor or wall mount applications. With low current consumption, the door holder has a holding force of up to 45kg.
The FSH-FDH50 accepts voltages of either 12 or 24VDC and is fire rated up to 4-hours to Australian Fire Test Standards when used with the supplied B110DH armature plate. The FSH-FDH50 is a compact, highly durable electromagnetic door holder suitable for most swing doors.
- Voltage input: 12V or 24V DC
- Current draw: 100mA (12V DC) or 50mA (24V DC)
- Holding force: 45kg
- Mount: Wall or Floor (Floor out-of-the-box)
- Dimensions: 110mm high (when floor mounted), 140mm long (when wall mounted)
