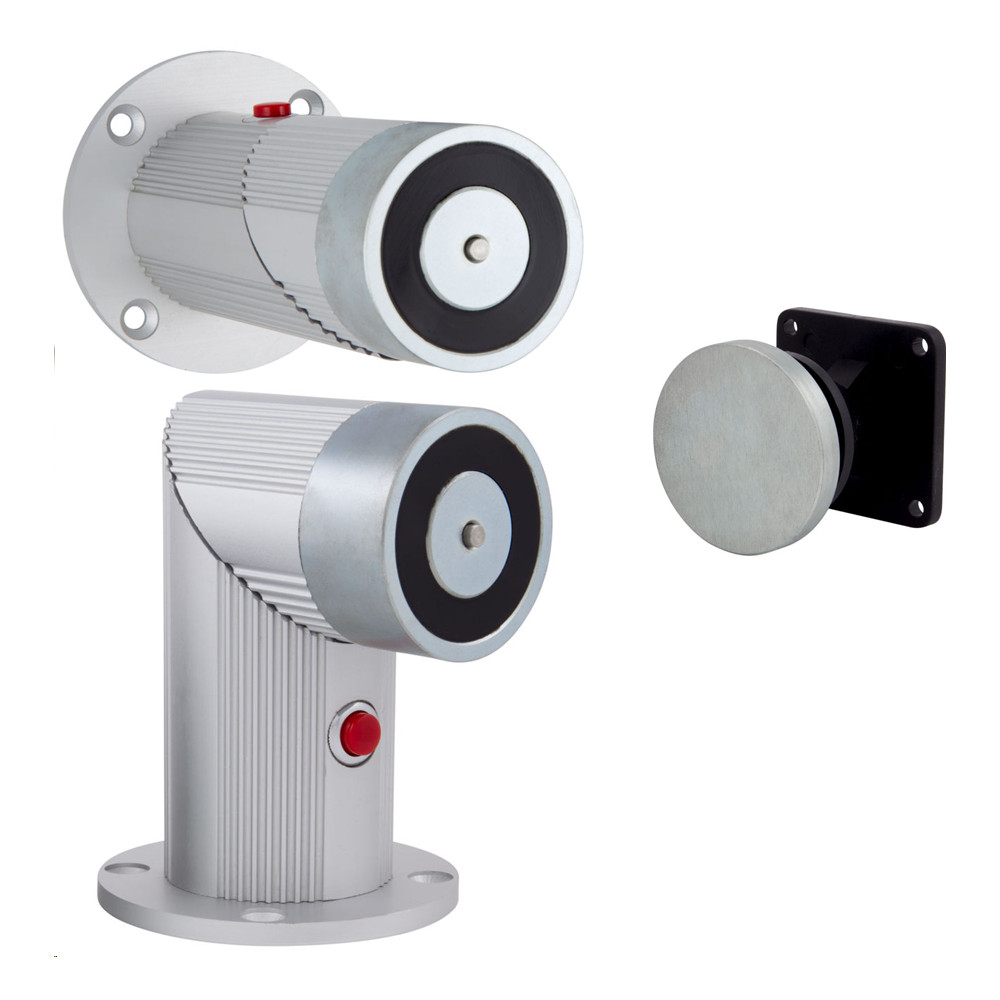

FSH FDH50 Electromagnetic Door Holder, Wall/Floor Mount 12/24V DC

The FSH-FDH50 is an electromagnetic door holder that is suitable for floor or wall mount applications. With low current consumption, the door holder has a holding force of up to 45kg.

The FSH-FDH50 accepts voltages of either 12 or 24VDC and is fire rated up to 4-hours to Australian Fire Test Standards when used with the supplied B110DH armature plate. The FSH-FDH50 is a compact, highly durable electromagnetic door holder suitable for most swing doors.

• Selectable voltage for 12V or 24V DC input (with jumper pins)
• Emergency Release / Test Button
• Simple unscrew, twist and re-screw application for floor or wall mount installation
• Durable and silent operation
• Compact Size for most types of swing doors
• Up to 4-hour fire rated in accordance with
• AS1905.1:2015 specifications (when used with the supplied B110DH armature plate)

Datasheets

• FSH-FDH50 Datasheet.pdf

• Voltage input: 12V or 24V DC
• Current draw: 100mA (12V DC) or 50mA (24V DC)
• Holding force: 45kg
• Mount: Wall or Floor (Floor out-of-the-box)
• Dimensions: 110mm high (when floor mounted), 140mm long (when wall mounted)
