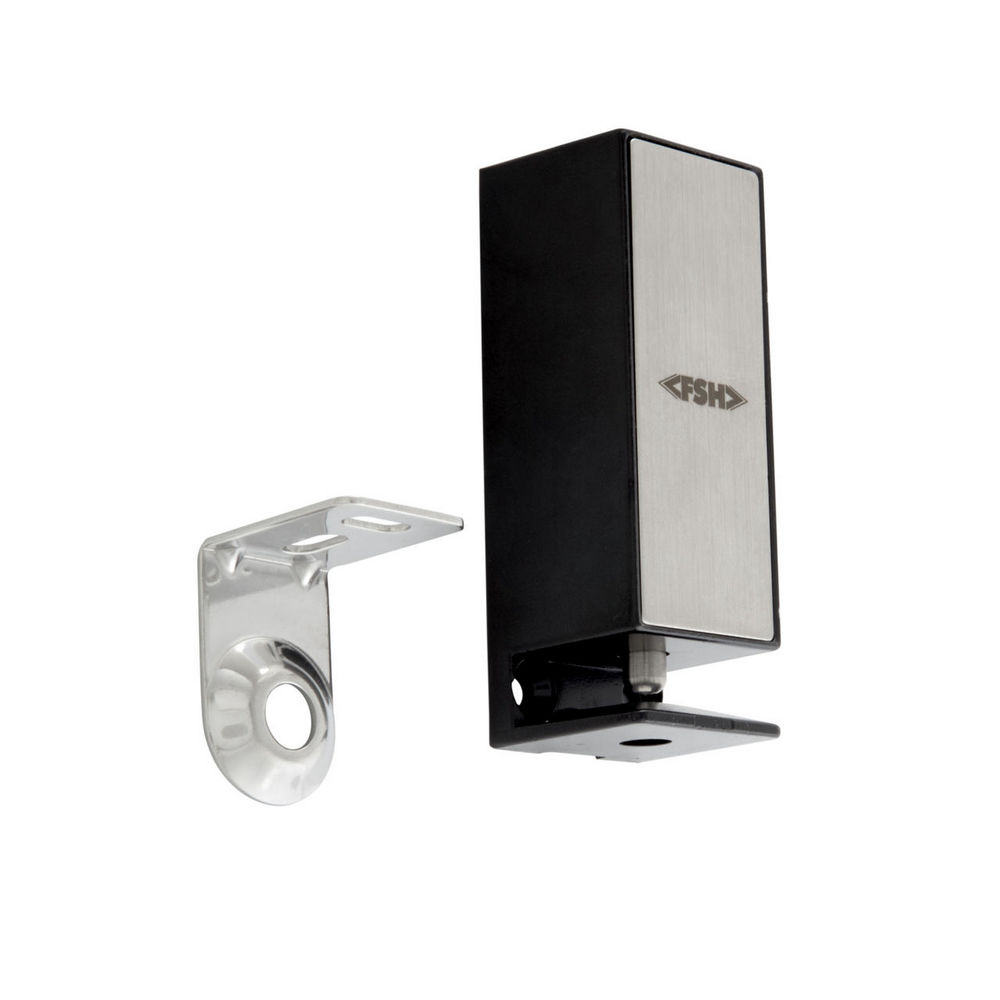

FSH FCL10 Cabinet Lock, Non Monitored, PTL/PTO, Surface Mount , 12/24V DC

The FSH-FCL10 is a compact surface mount cabinet lock designed specifically to fit cabinets and lockers with hinged swing through or sliding doors. It can be mounted either horizontally or vertically and is field selectable for either 12 or 24VDC operation.

The FCL10 default factory setting is Power To Open and is field changeable to Power To Lock.

• PTO / PTL interchangeable on site
• Dual voltage 12/24VDC
• Applications: Sliding cabinet doors and swing cabinet doors

Datasheets

• FSH-FCL10 Datasheet.pdf

• Function: Power To Lock (PTL) / Power To Open (PTO) field interchangeable
• Holding Strength: Up to 200kg
• Voltage/Current: Dual voltage 12VDC/24VDC, 300mA at 12VDC and 150mA at 24VDC
• Connection Cable: 1m
