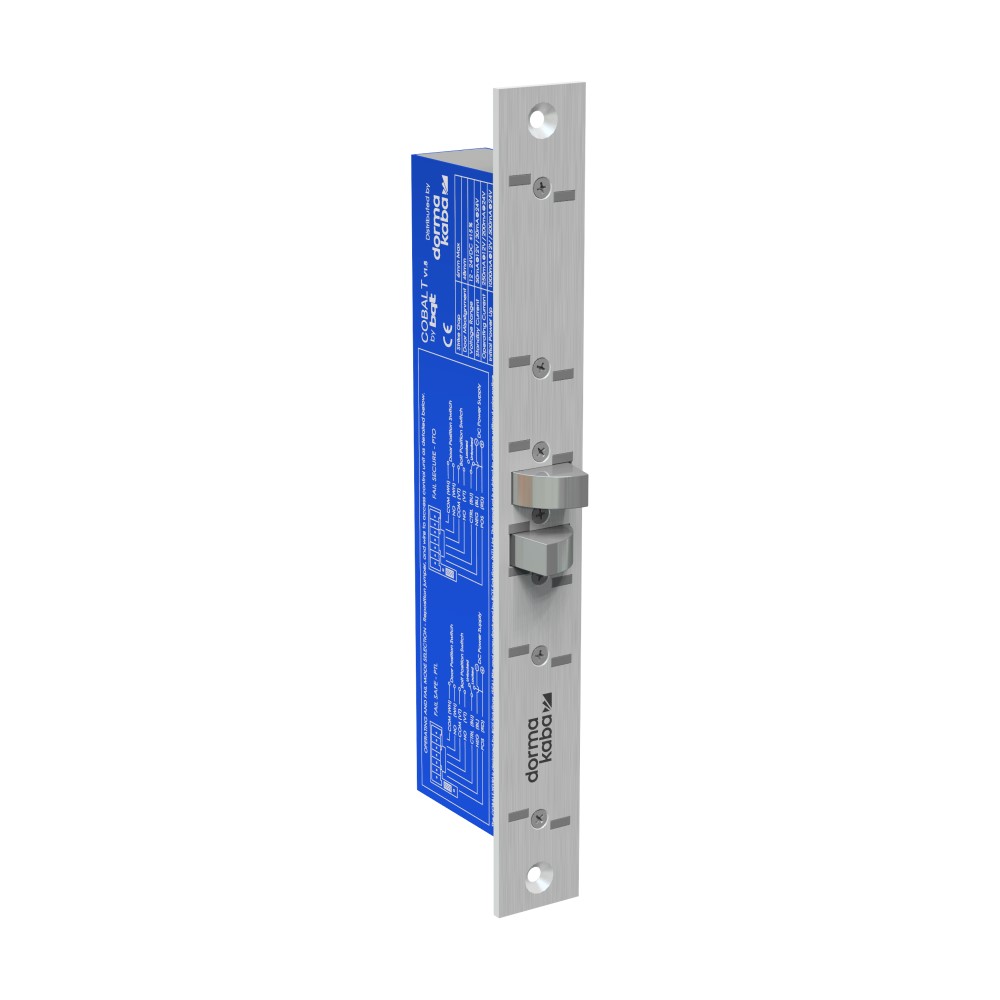

Dormakaba SL30DBL Cobalt Electronic Side Load Lock, Monitored, PTL/PTO

Dormakaba's DK-SL30DBL cobalt side load lock is an electronic motor driven lock with two quarter circle mortice levers that is designed to secure commercial and residential double action swing doors. With a substantial release load of up to 100kgs, a holding force of up to 1000kgs and the ability to lock and secure doors that are up to 8mm out of alignment makes this a robust and specialised locking solution.

• Double quarter circle stainless steel bolt
• Dual monitoring (door and bolt positions)
• Automatic locking
• Reverse polarity protection
• Power To Lock, Fail Safe / Power To Open, Fail Secure field configurable
• Horizontal or vertical mounting options
• Glass door mounting options (accessories sold separately)

Datasheets

• DK-SL30DBL Datasheet.pdf

• Dimensions: 255L x 30W x 51D (mm)
• Door misalignment tolerance: 16mm (+/- 8mm)
• Bolt thickness: 10mm
• Holding force: 1000kgs
• Side load release tolerance: 100kgs
• Power input: 12 - 24V DC
• Power consumption: 1A (peak), 50mA (idle)
• Endurance: 300,000 cycles
