Dormakaba Monitored C-Lever Pro Kit, x1 30mm Mortice & x1 19mm Flush Reed

DK-PROM-KIT-30
AVAILABLE TO ORDER
Dormakaba Monitored C-Lever Pro Kit, x1 30mm Mortice & x1 19mm Flush Reed

The Dormakaba Evolo range of wireless locking products have a high-level integration to Inner Range’s Integriti system. The wireless locks communicate with the wireless gateway and the gateway communicates to Dormakaba’s B-Comm software. Integriti then communicates with the B-Comm software and provides a seamless interface to the wireless access solution. This integration offers a fantastic solution for sites where cabling to a door is not an option, but a complete and comprehensive keyless access control system is necessary.

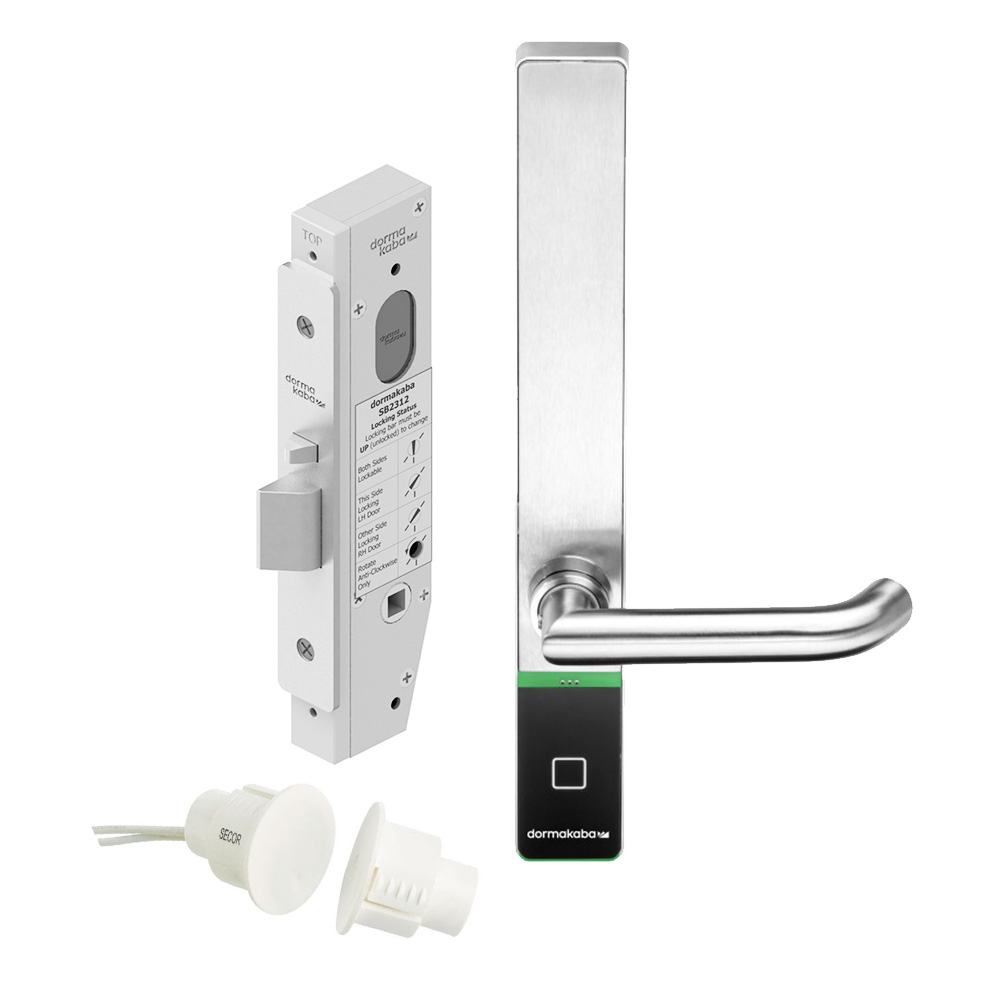

The DK-PROM-KIT-30-KO kit includes Dormakaba's C-Lever Pro wireless lock and the SB2312 mortice lock and one CSD-2002 reed switch. Dormakaba use a standard cylinder cut out hole to allow the use of existing cylinders when retrofitting existing sites.

  • AS1428 Australian Standards compliant
  • CSN/UID RFID reader
  • Reader above lever or reader below lever orientation installation
  • Integriti integration
  • 304 grade stainless steel
  • Input terminal for door monitoring, reed switch required
  • Optional key override
  • Black facia cover

  • Colour: black
  • Weatherproof: IP55
  • Power: 2x 1.5V AA batteries
  • Battery life: Up to 150,000 cycles
  • Operating temperature: -25 to 70 degrees Celsius
  • Dimensions: 39.8mm (W) x 298mm (H)
  • Spindle: 8mm
  • Inputs: 1 (for door monitoring)
  • Backset: 30mm
  • Key override: cavity (cylinder not included)

No description available for this product
  • Colour: black
  • Weatherproof: IP55
  • Power: 2x 1.5V AA batteries
  • Battery life: Up to 150,000 cycles
  • Operating temperature: -25 to 70 degrees Celsius
  • Dimensions: 39.8mm (W) x 298mm (H)
  • Spindle: 8mm
  • Inputs: 1 (for door monitoring)
  • Backset: 30mm
  • Key override: cavity (cylinder not included)
